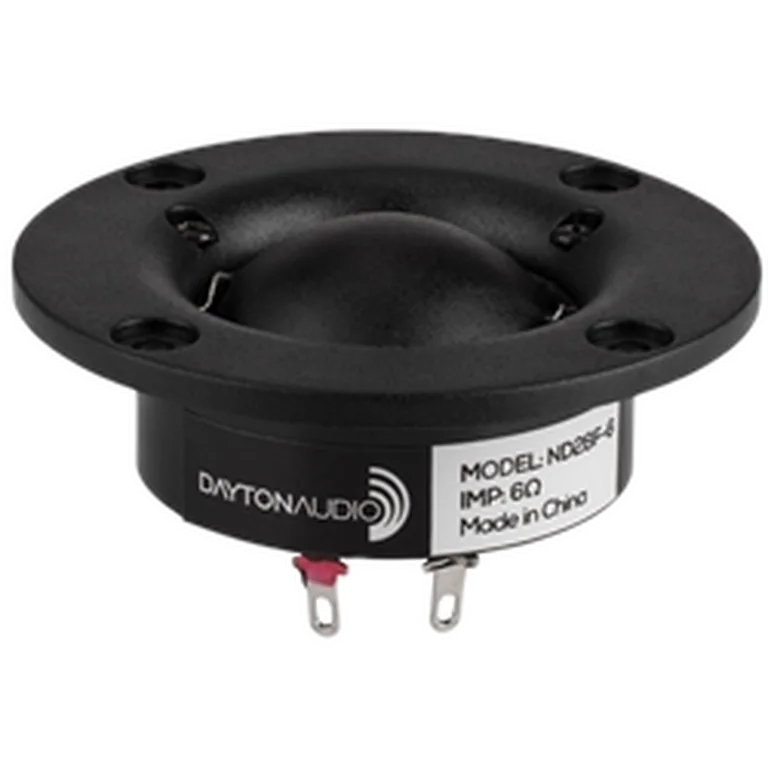

Dayton Audio ND28F-6 standard | Fs 1097 Hz, 87.2 dB, Qts 1.240 | LoudspeakerLab

Thiele-Small parameters

Fs: 1097 Hz; Qts: 1.240; Qes: 2.940; Qms: 2.160; Sd: 4.9 cm²; Re: 5.40 Ω; Le: 0.08 mH; Sensitivity: 87.2 dB; Nominal Z: 5.7 Ω; Measured range: 300-20000 Hz

Driver quality scores

On-axis flatness 78 · DI tracking 76 · DI smoothness 31

Usable passband

Scored passband 2354 Hz–10.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $75.04 PLN
• parts_express — $15.98 USD
• rumoh — $17.45 EUR
• solen — $28.20 CAD
• soundimports — $14.42 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (55.6/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
