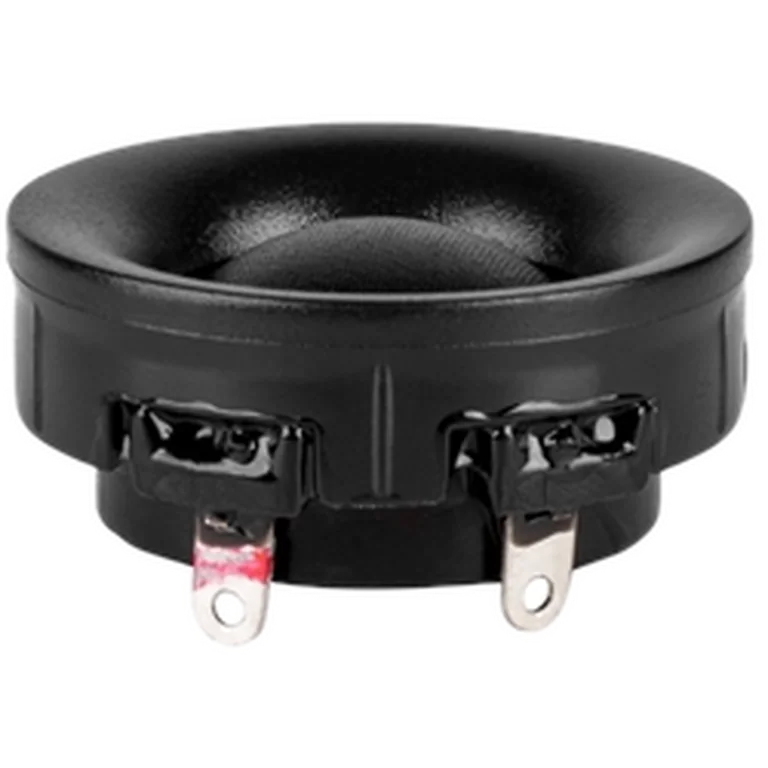

Dayton Audio ND16FA-6 standard | Fs 2125 Hz, 88.1 dB, Qts 2.200 | LoudspeakerLab

Thiele-Small parameters

Fs: 2125 Hz; Qts: 2.200; Qes: 6.090; Qms: 3.450; Sd: 2.0 cm²; Re: 5.80 Ω; Le: 0.04 mH; Sensitivity: 88.1 dB; Nominal Z: 5.8 Ω; Measured range: 500-20000 Hz

Driver quality scores

On-axis flatness 67 · DI tracking 78 · DI smoothness 24

Usable passband

Scored passband 3961 Hz–14.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $47.09 PLN
• parts_express — $8.98 USD
• rumoh — $10.95 EUR
• solen — $14.66 CAD
• soundimports — $9.05 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (55.6/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
