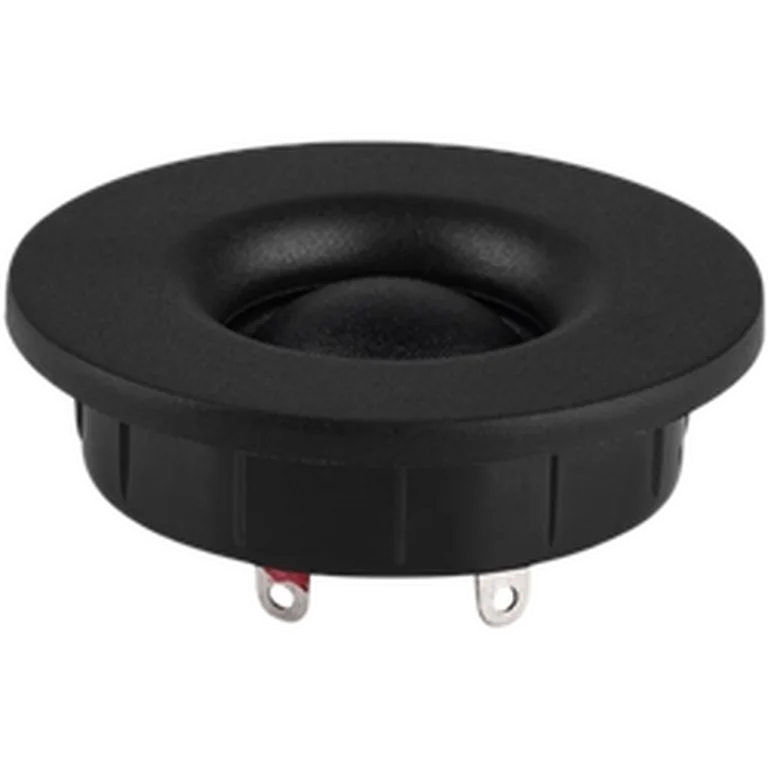

Dayton Audio ND16FA-4 standard | Fs 2246 Hz, 93.1 dB, Qts 1.790 | LoudspeakerLab

Thiele-Small parameters

Fs: 2246 Hz; Qts: 1.790; Qes: 3.460; Qms: 3.710; Re: 3.17 Ω; Le: 0.03 mH; Sensitivity: 93.1 dB; Nominal Z: 3.2 Ω; Measured range: 298-20000 Hz

Driver quality scores

On-axis flatness 68 · DI tracking 61 · DI smoothness 14

Usable passband

Scored passband 3961 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $47.09 PLN
• parts_express — $8.98 USD
• solen — $13.62 CAD
• soundimports — $9.05 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (55.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
