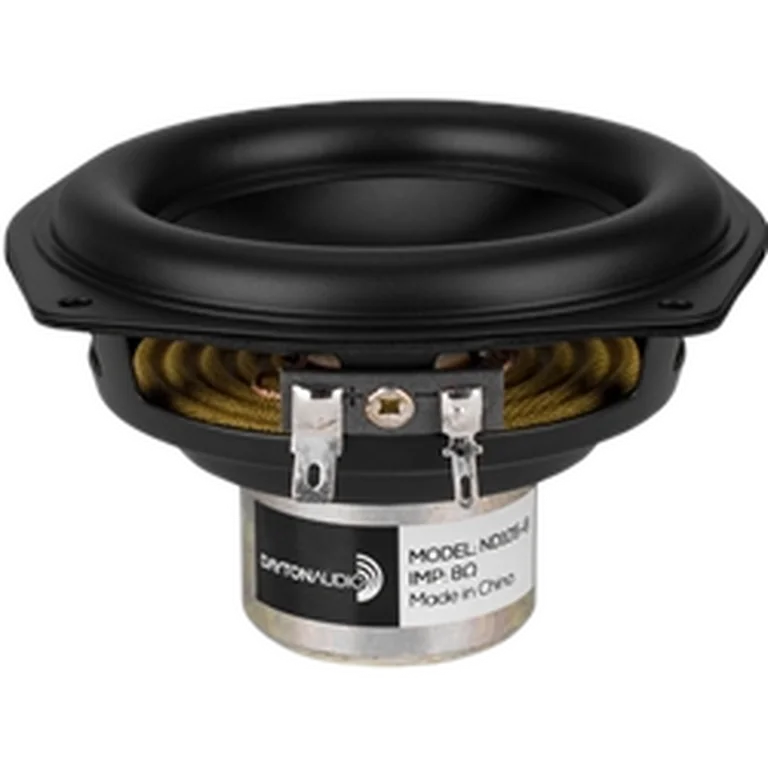

Dayton Audio ND105-8 standard | Fs 67 Hz, 81.5 dB, Qts 0.660 | LoudspeakerLab

Thiele-Small parameters

Fs: 67 Hz; Qts: 0.660; Qes: 0.740; Qms: 5.570; Vas: 2.97 L; Sd: 51.5 cm²; Re: 7.70 Ω; Le: 1.25 mH; Sensitivity: 81.5 dB; Nominal Z: 8.3 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 50 · DI tracking 59 · DI smoothness 43

Usable passband

Scored passband 98 Hz–6.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~4.9 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $156.74 PLN
• parts_express — $32.98 USD
• rumoh — $36.40 EUR
• solen — $54.30 CAD
• soundimports — $30.12 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
