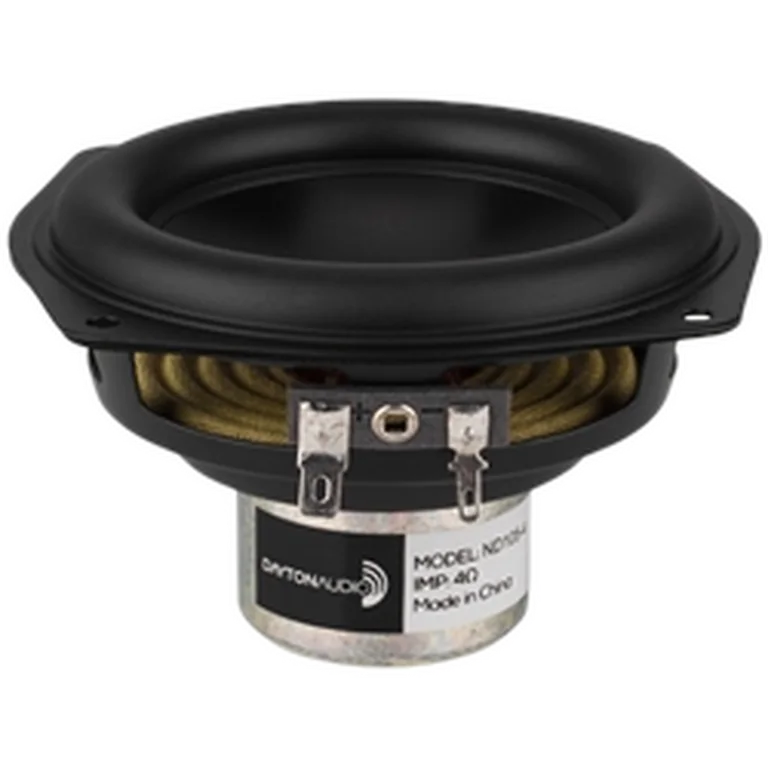

Dayton Audio ND105-4 standard | Fs 79 Hz, 84.6 dB, Qts 0.610 | LoudspeakerLab

Thiele-Small parameters

Fs: 79 Hz; Qts: 0.610; Qes: 0.660; Qms: 7.420; Vas: 1.97 L; Sd: 51.5 cm²; Re: 3.70 Ω; Le: 0.76 mH; Sensitivity: 84.6 dB; Nominal Z: 4.2 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 76 · DI tracking 74 · DI smoothness 62

Usable passband

Scored passband 120 Hz–3.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~3.7 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $156.74 PLN
• parts_express — $32.98 USD
• rumoh — $36.40 EUR
• solen — $54.30 CAD
• soundimports — $30.12 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
