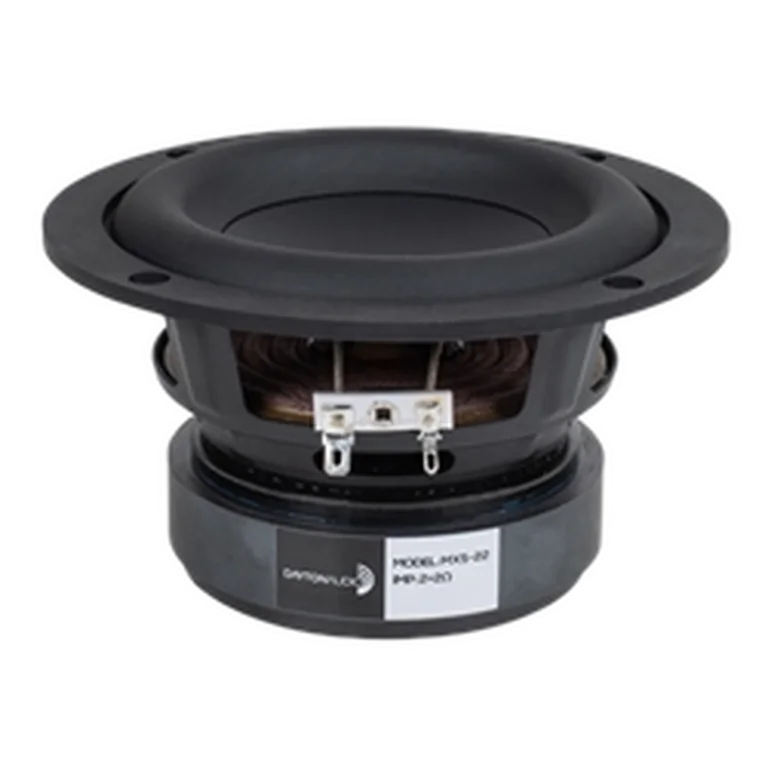

Dayton Audio MX5-22 standard | Fs 45 Hz, 83.5 dB, Qts 0.430 | LoudspeakerLab

Thiele-Small parameters

Fs: 45 Hz; Qts: 0.430; Qes: 0.500; Qms: 3.020; Vas: 4.90 L; Sd: 84.4 cm²; Re: 4.30 Ω; Le: 1.10 mH; Sensitivity: 83.5 dB; Nominal Z: 5.0 Ω; Measured range: 1-40000 Hz

Driver quality scores

On-axis flatness 66 · DI tracking 72 · DI smoothness 39

Usable passband

Scored passband 69 Hz–1.4 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~4.6 L · Fb 47 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $49.98 USD
• soundimports — $49.55 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
