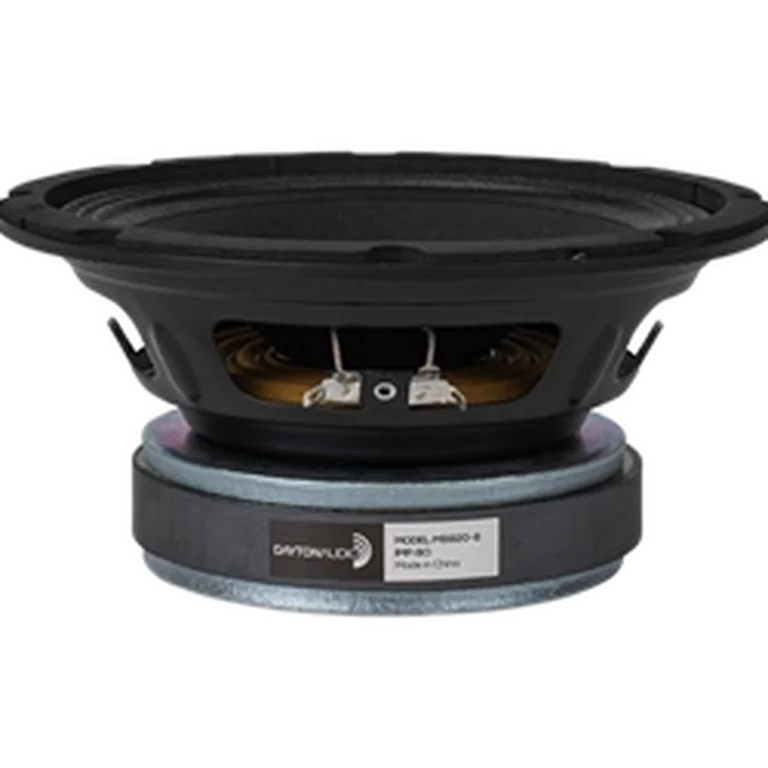

Dayton Audio MB820-8 standard | Fs 69 Hz, 92.2 dB, Qts 0.458 | LoudspeakerLab

Thiele-Small parameters

Fs: 69 Hz; Qts: 0.458; Qes: 0.520; Qms: 3.830; Vas: 15.80 L; Sd: 211.2 cm²; Re: 5.26 Ω; Le: 1.04 mH; Sensitivity: 92.2 dB; Nominal Z: 6.2 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 66 · DI tracking 21 · DI smoothness 13

Usable passband

Scored passband 104 Hz–3.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~17.1 L · Fb 68 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $49.98 USD
• soundimports — $46.24 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
