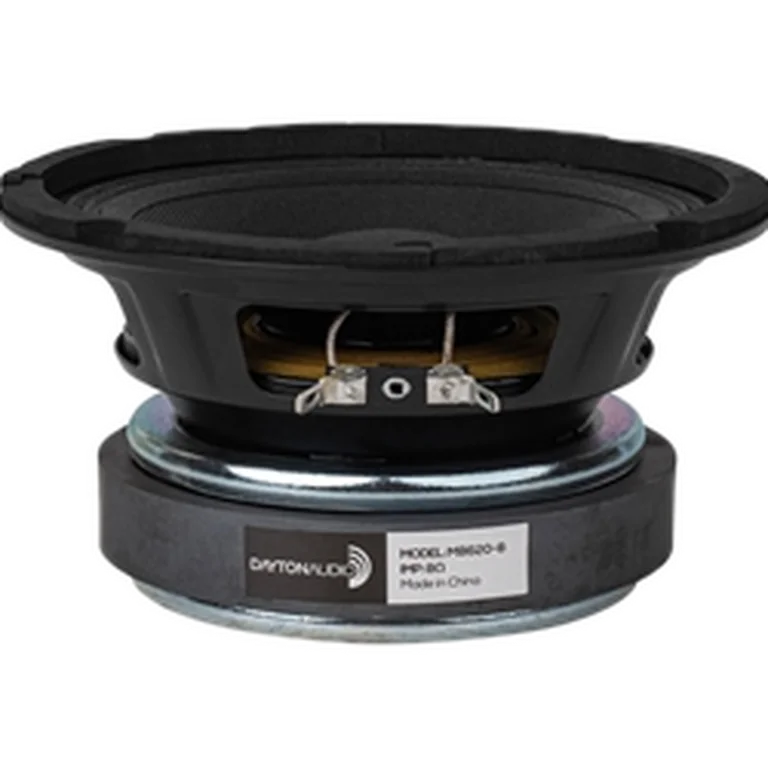

Dayton Audio MB620-8 standard | Fs 104 Hz, 89.0 dB, Qts 0.593 | LoudspeakerLab

Thiele-Small parameters

Fs: 104 Hz; Qts: 0.593; Qes: 0.688; Qms: 4.290; Vas: 6.77 L; Sd: 132.7 cm²; Re: 5.47 Ω; Le: 0.93 mH; Sensitivity: 89.0 dB; Nominal Z: 6.2 Ω; Measured range: 20-19670 Hz

Driver quality scores

On-axis flatness 70 · DI tracking 74 · DI smoothness 49

Usable passband

Scored passband 156 Hz–3.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~13.8 L · Fb 83 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $44.98 USD
• soundimports — $48.31 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
