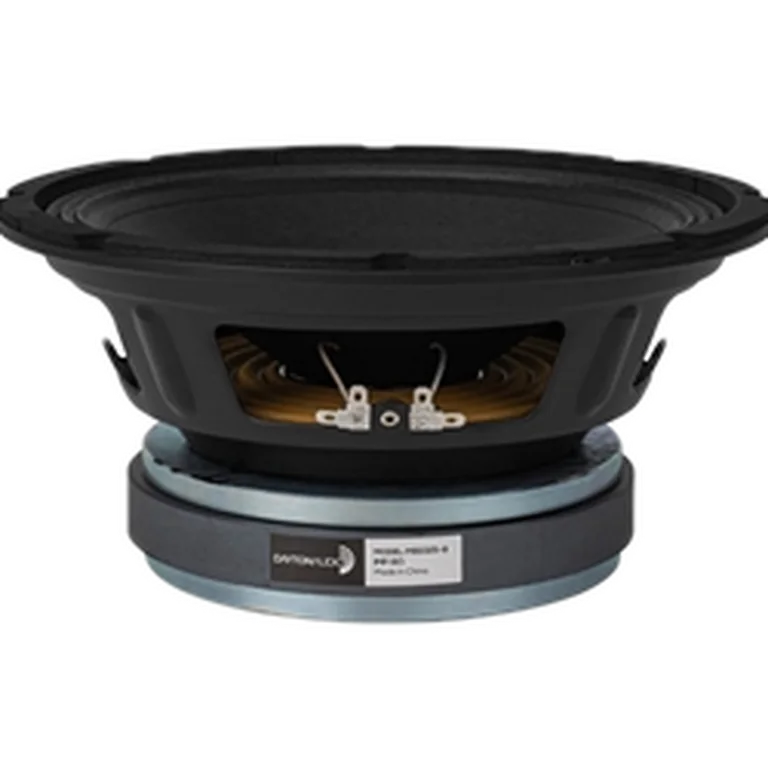

Dayton Audio MB1025-8 standard | Fs 45 Hz, 95.9 dB, Qts 0.340 | LoudspeakerLab

Thiele-Small parameters

Fs: 45 Hz; Qts: 0.340; Qes: 0.360; Qms: 6.470; Vas: 50.70 L; Sd: 346.4 cm²; Re: 5.30 Ω; Le: 1.20 mH; Sensitivity: 95.9 dB; Nominal Z: 6.1 Ω; Measured range: 20-19670 Hz

Driver quality scores

On-axis flatness 69 · DI tracking 93 · DI smoothness 95

Usable passband

Scored passband 67 Hz–1.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~29.4 L · Fb 58 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $69.98 USD
• soundimports — $60.70 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
