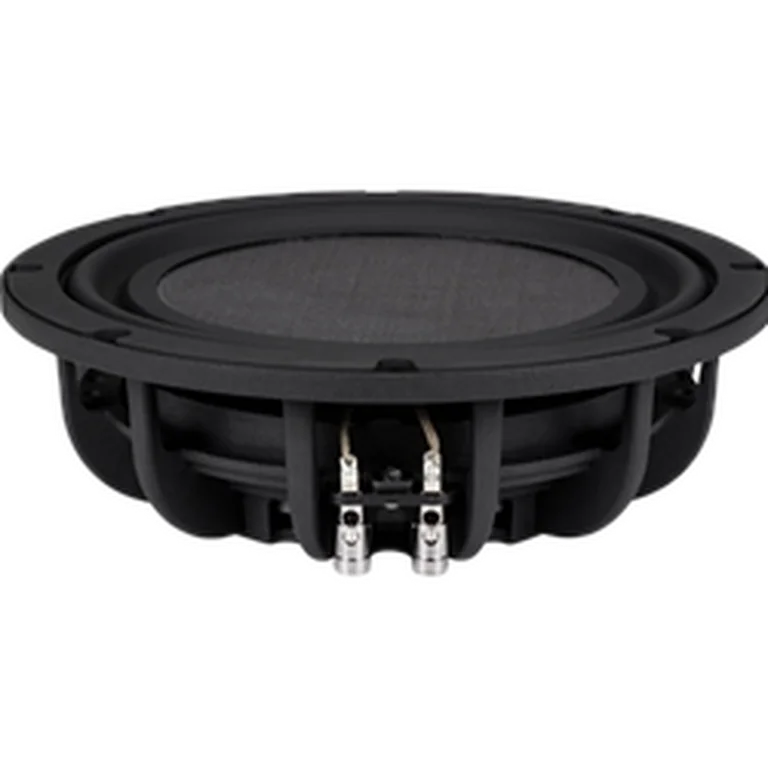

Dayton Audio LS10-44 standard | Fs 34 Hz, 84.3 dB, Qts 0.430 | LoudspeakerLab

Thiele-Small parameters

Fs: 34 Hz; Qts: 0.430; Qes: 0.470; Qms: 5.150; Vas: 30.80 L; Sd: 366.4 cm²; Re: 7.40 Ω; Le: 5.25 mH; Sensitivity: 84.3 dB; Nominal Z: 11.1 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 56

Usable passband

Scored passband 52 Hz–404 Hz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~28.7 L · Fb 36 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $154.98 USD
• soundimports — $146.65 EUR

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
