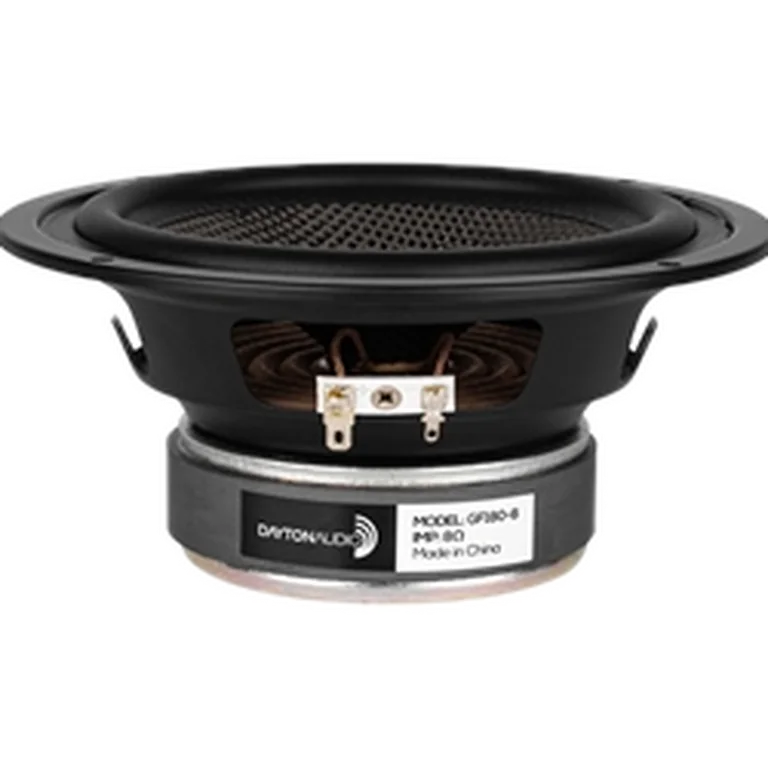

Dayton Audio GF180-8 standard | Fs 53 Hz, 81.8 dB, Qts 0.500 | LoudspeakerLab

Thiele-Small parameters

Fs: 53 Hz; Qts: 0.500; Qes: 0.600; Qms: 3.070; Vas: 15.50 L; Sd: 130.2 cm²; Re: 8.00 Ω; Le: 1.90 mH; Sensitivity: 81.8 dB; Nominal Z: 8.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 75 · DI tracking 55 · DI smoothness 24

Usable passband

Scored passband 80 Hz–4.2 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~20.7 L · Fb 48 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $31.49 USD
• rumoh — $38.40 EUR
• solen — $45.57 CAD
• soundimports — $36.36 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
