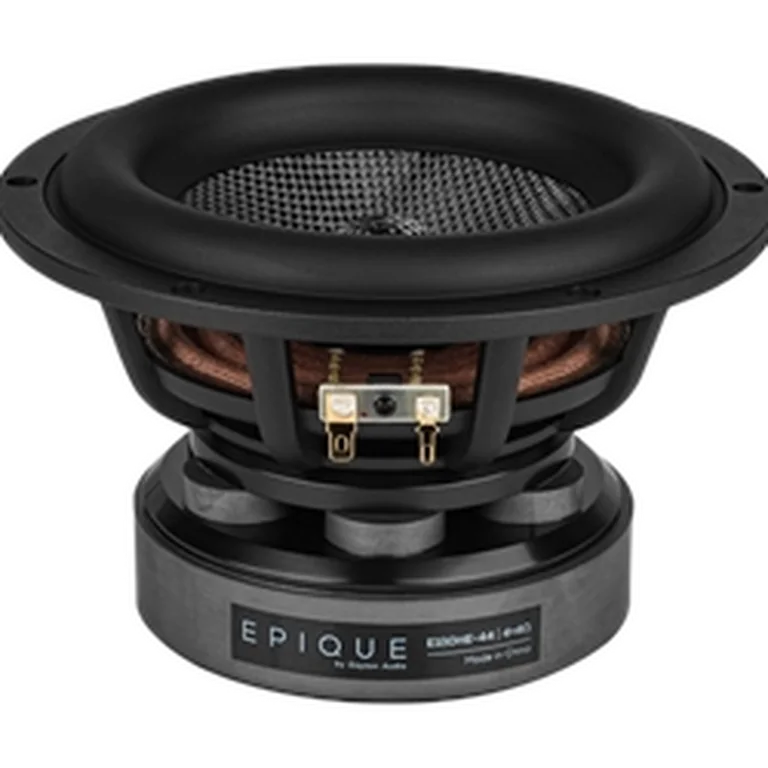

Dayton Audio E180HE-4 standard | Fs 33 Hz, 83.8 dB, Qts 0.428 | LoudspeakerLab

Thiele-Small parameters

Fs: 33 Hz; Qts: 0.428; Qes: 0.495; Qms: 3.160; Vas: 17.20 L; Sd: 136.8 cm²; Re: 6.68 Ω; Le: 1.60 mH; Sensitivity: 83.8 dB; Nominal Z: 8.5 Ω; Measured range: 15-20000 Hz

Driver quality scores

On-axis flatness 52 · DI tracking 0 · DI smoothness 27

Usable passband

Scored passband 50 Hz–9.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~15.9 L · Fb 34 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $139.98 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
