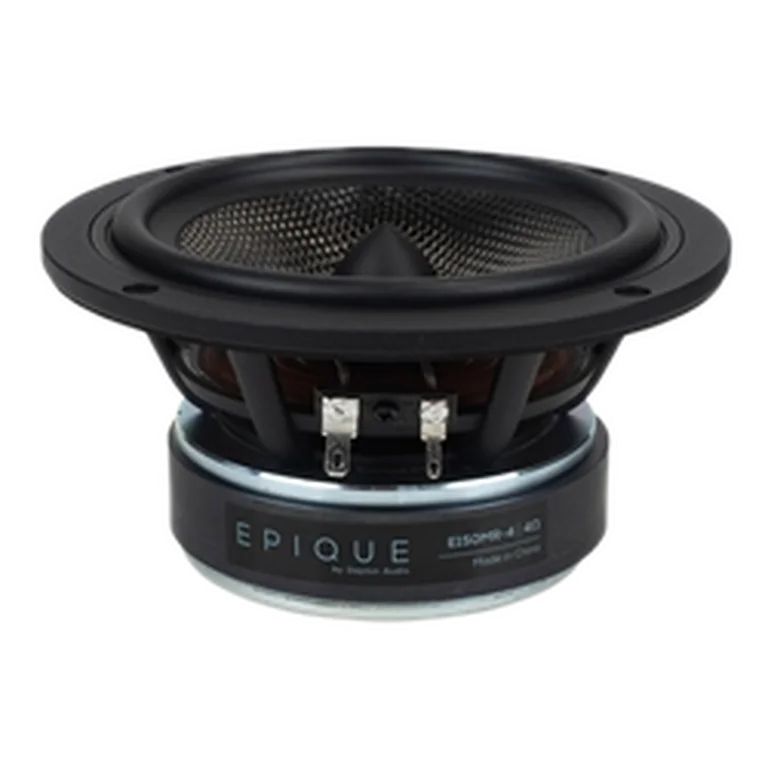

Dayton Audio E150MR-4 standard | Fs 75 Hz, 91.7 dB, Qts 0.521 | LoudspeakerLab

Thiele-Small parameters

Fs: 75 Hz; Qts: 0.521; Qes: 0.609; Qms: 3.619; Vas: 7.43 L; Sd: 100.3 cm²; Re: 3.64 Ω; Le: 0.08 mH; Sensitivity: 91.7 dB; Nominal Z: 4.1 Ω; Measured range: 10-20000 Hz

Driver quality scores

On-axis flatness 54 · DI tracking 0 · DI smoothness 36

Usable passband

Scored passband 113 Hz–13.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~10.8 L · Fb 66 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $59.98 USD
• solen — $88.16 CAD
• soundimports — $74.34 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
