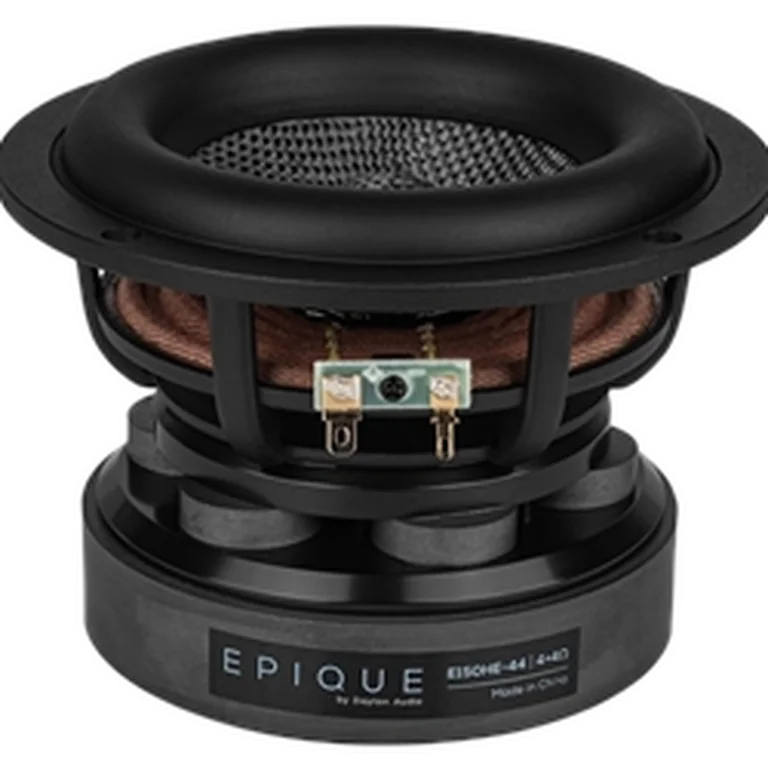

Dayton Audio E150HE-4 standard | Fs 39 Hz, 80.2 dB, Qts 0.400 | LoudspeakerLab

Thiele-Small parameters

Fs: 39 Hz; Qts: 0.400; Qes: 0.458; Qms: 3.200; Vas: 10.40 L; Sd: 98.5 cm²; Re: 6.74 Ω; Le: 1.56 mH; Sensitivity: 80.2 dB; Nominal Z: 8.8 Ω; Measured range: 15-20000 Hz

Driver quality scores

On-axis flatness 74 · DI tracking 35 · DI smoothness 33

Usable passband

Scored passband 58 Hz–4.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~8.4 L · Fb 43 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $119.98 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
