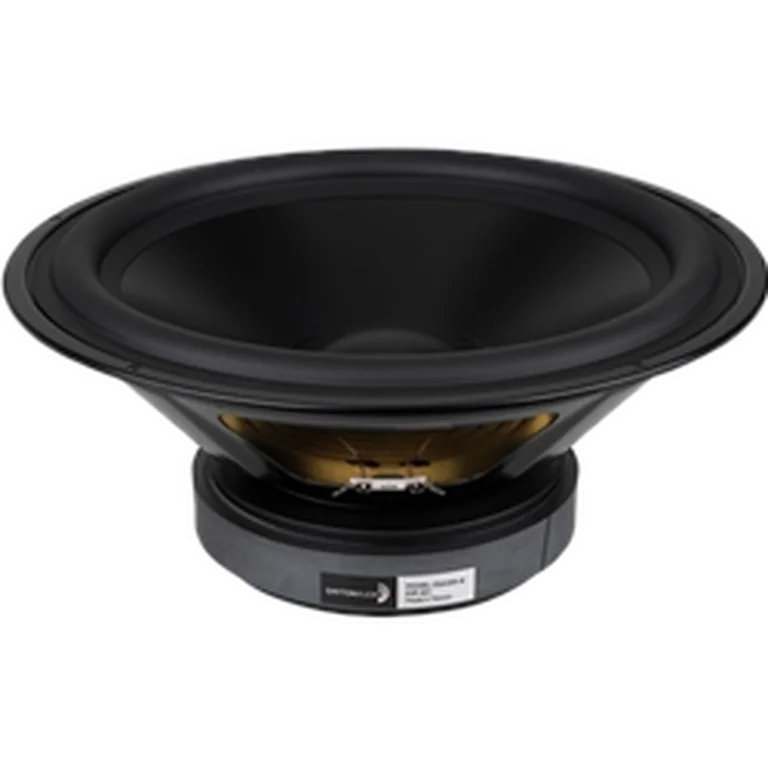

Dayton Audio DSA315-8 standard | Fs 24 Hz, 92.2 dB, Qts 0.330 | LoudspeakerLab

Thiele-Small parameters

Fs: 24 Hz; Qts: 0.330; Qes: 0.400; Qms: 1.890; Vas: 147.00 L; Sd: 506.7 cm²; Re: 6.00 Ω; Le: 1.11 mH; Sensitivity: 92.2 dB; Nominal Z: 6.4 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 79 · DI tracking 78 · DI smoothness 77

Usable passband

Scored passband 36 Hz–1.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~80.4 L · Fb 32 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $773.79 PLN
• parts_express — $128.98 USD
• rumoh — $166.90 EUR
• solen — $203.49 CAD
• soundimports — $148.72 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
