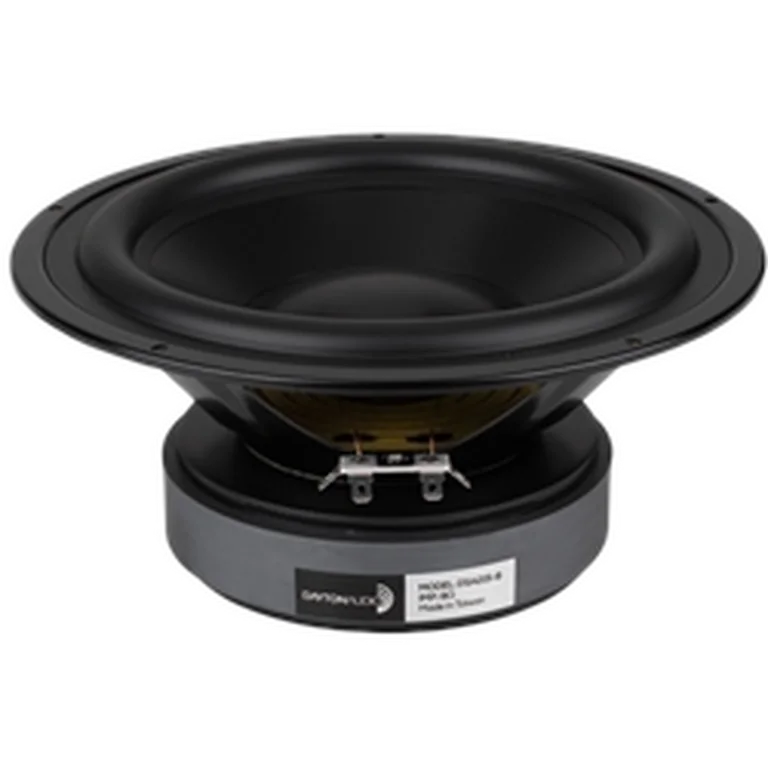

Dayton Audio DSA215-8 standard | Fs 35 Hz, 89.0 dB, Qts 0.330 | LoudspeakerLab

Thiele-Small parameters

Fs: 35 Hz; Qts: 0.330; Qes: 0.400; Qms: 1.870; Vas: 37.40 L; Sd: 211.2 cm²; Re: 5.90 Ω; Le: 1.00 mH; Sensitivity: 89.0 dB; Nominal Z: 6.4 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 44 · DI tracking 0 · DI smoothness 0

Usable passband

Scored passband 54 Hz–7.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~20.5 L · Fb 47 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $406.14 PLN
• parts_express — $69.98 USD
• rumoh — $94.40 EUR
• solen — $103.38 CAD
• soundimports — $78.06 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
