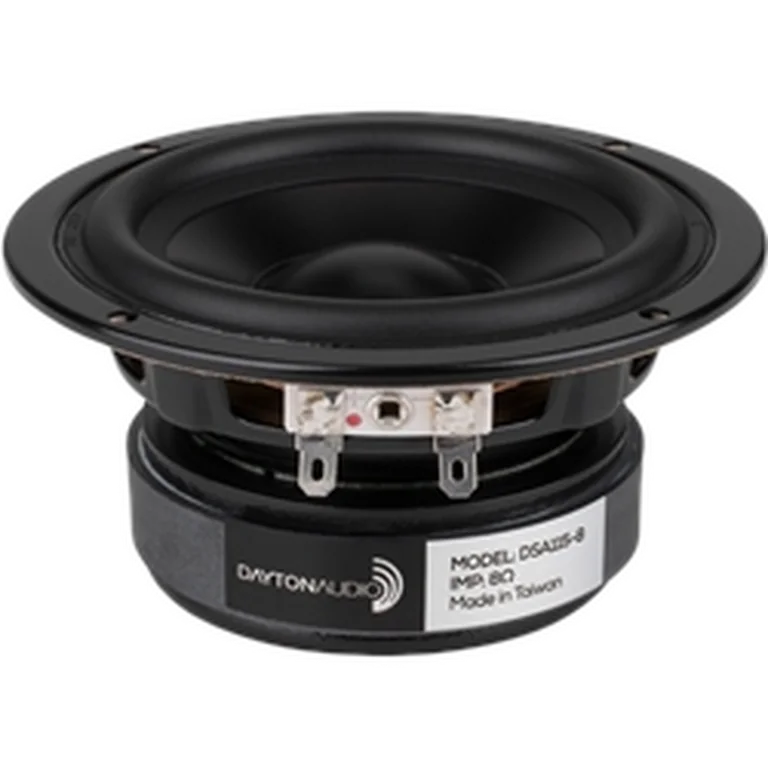

Dayton Audio DSA115-8 standard | Fs 63 Hz, 84.6 dB, Qts 0.420 | LoudspeakerLab

Thiele-Small parameters

Fs: 63 Hz; Qts: 0.420; Qes: 0.530; Qms: 2.000; Vas: 3.96 L; Sd: 54.1 cm²; Re: 5.90 Ω; Le: 0.63 mH; Sensitivity: 84.6 dB; Nominal Z: 6.4 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 64 · DI tracking 81 · DI smoothness 51

Usable passband

Scored passband 95 Hz–3.3 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~3.5 L · Fb 67 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $156.74 PLN
• parts_express — $30.98 USD
• solen — $43.66 CAD
• soundimports — $30.12 EUR
• theloudspeakerkit — $69.50 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
