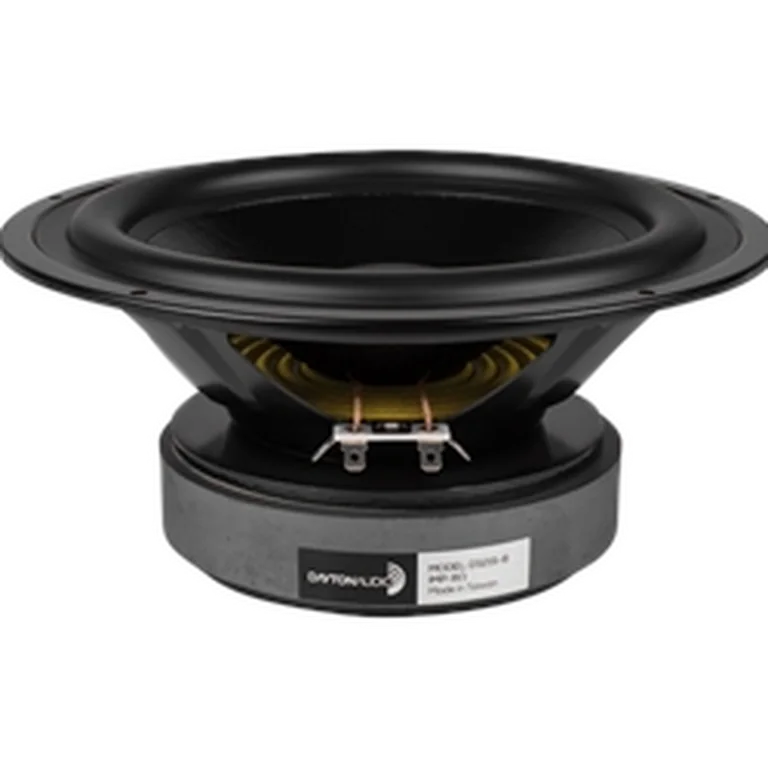

Dayton Audio DS215-8 standard | Fs 34 Hz, 89.4 dB, Qts 0.310 | LoudspeakerLab

Thiele-Small parameters

Fs: 34 Hz; Qts: 0.310; Qes: 0.380; Qms: 1.750; Vas: 43.10 L; Sd: 211.2 cm²; Re: 5.80 Ω; Le: 1.25 mH; Sensitivity: 89.4 dB; Nominal Z: 6.3 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 48 · DI tracking 71 · DI smoothness 47

Usable passband

Scored passband 52 Hz–3.3 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~21.2 L · Fb 48 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $326.59 PLN
• parts_express — $62.98 USD
• rumoh — $75.90 EUR
• solen — $94.06 CAD
• soundimports — $62.77 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
