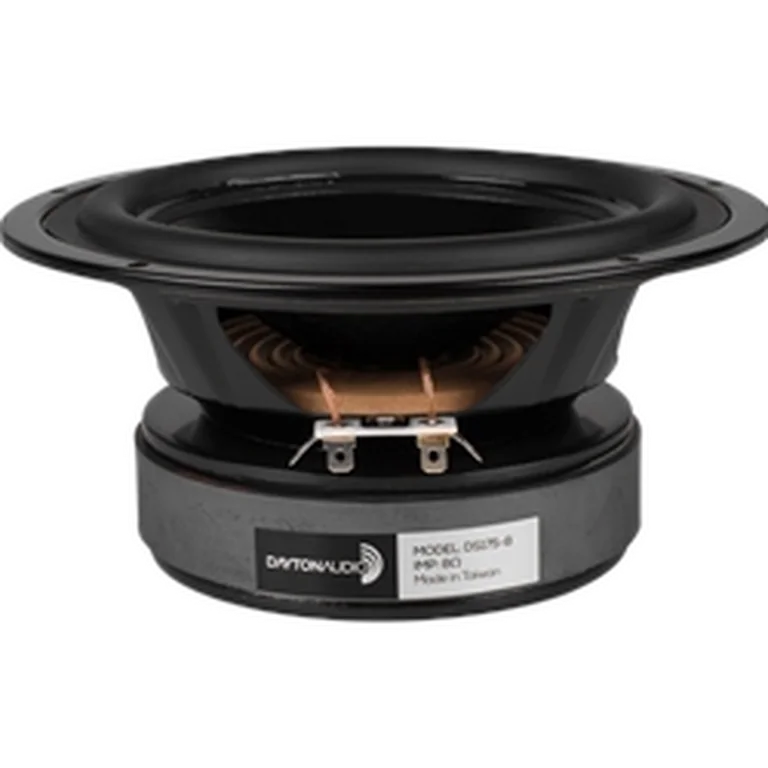

Dayton Audio DS175-8 standard | Fs 37 Hz, 88.1 dB, Qts 0.270 | LoudspeakerLab

Thiele-Small parameters

Fs: 37 Hz; Qts: 0.270; Qes: 0.320; Qms: 1.630; Vas: 17.00 L; Sd: 128.7 cm²; Re: 5.70 Ω; Le: 1.06 mH; Sensitivity: 88.1 dB; Nominal Z: 6.3 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 49 · DI tracking 54 · DI smoothness 53

Usable passband

Scored passband 66 Hz–5.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~6.6 L · Fb 60 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $236.29 PLN
• parts_express — $46.98 USD
• rumoh — $54.90 EUR
• solen — $68.42 CAD
• soundimports — $45.41 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
