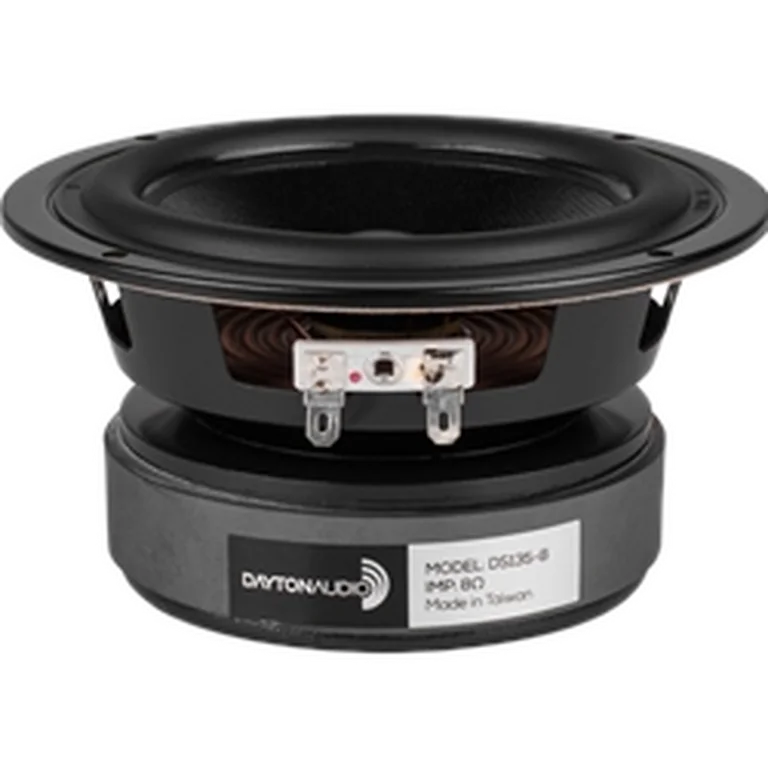

Dayton Audio DS135-8 standard | Fs 52 Hz, 85.8 dB, Qts 0.390 | LoudspeakerLab

Thiele-Small parameters

Fs: 52 Hz; Qts: 0.390; Qes: 0.480; Qms: 2.020; Vas: 7.27 L; Sd: 75.4 cm²; Re: 5.90 Ω; Le: 0.84 mH; Sensitivity: 85.8 dB; Nominal Z: 6.3 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 52 · DI tracking 60 · DI smoothness 48

Usable passband

Scored passband 78 Hz–5.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~5.5 L · Fb 60 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $180.39 PLN
• parts_express — $36.98 USD
• rumoh — $41.90 EUR
• solen — $55.42 CAD
• soundimports — $34.67 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
