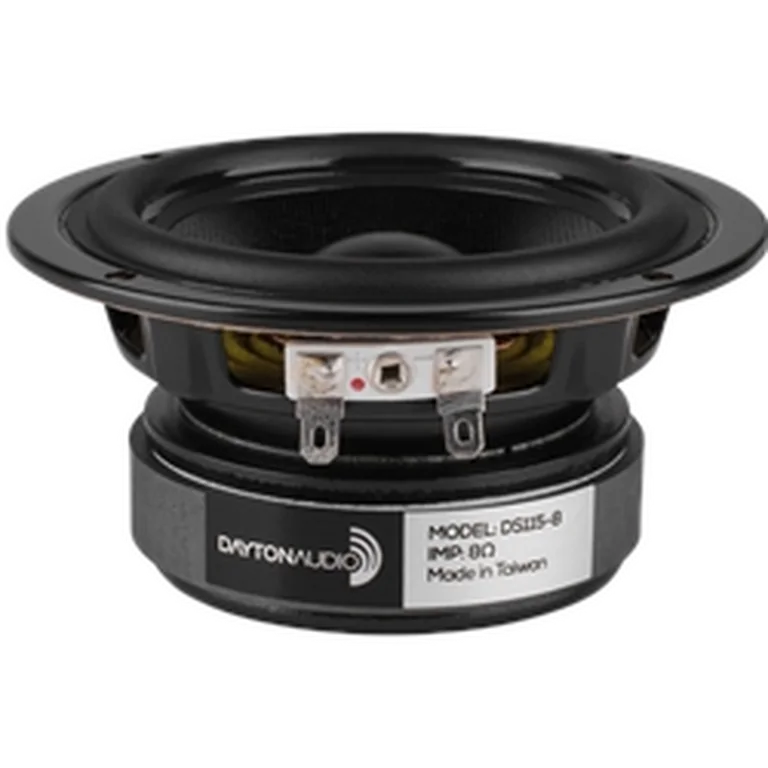

Dayton Audio DS115-8 standard | Fs 55 Hz, 84.5 dB, Qts 0.380 | LoudspeakerLab

Thiele-Small parameters

Fs: 55 Hz; Qts: 0.380; Qes: 0.460; Qms: 2.100; Vas: 4.33 L; Sd: 54.1 cm²; Re: 5.80 Ω; Le: 0.80 mH; Sensitivity: 84.5 dB; Nominal Z: 6.3 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 66 · DI tracking 85 · DI smoothness 63

Usable passband

Scored passband 82 Hz–2.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~3.1 L · Fb 64 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $135.24 PLN
• parts_express — $25.98 USD
• rumoh — $31.40 EUR
• solen — $38.62 CAD
• soundimports — $30.54 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
