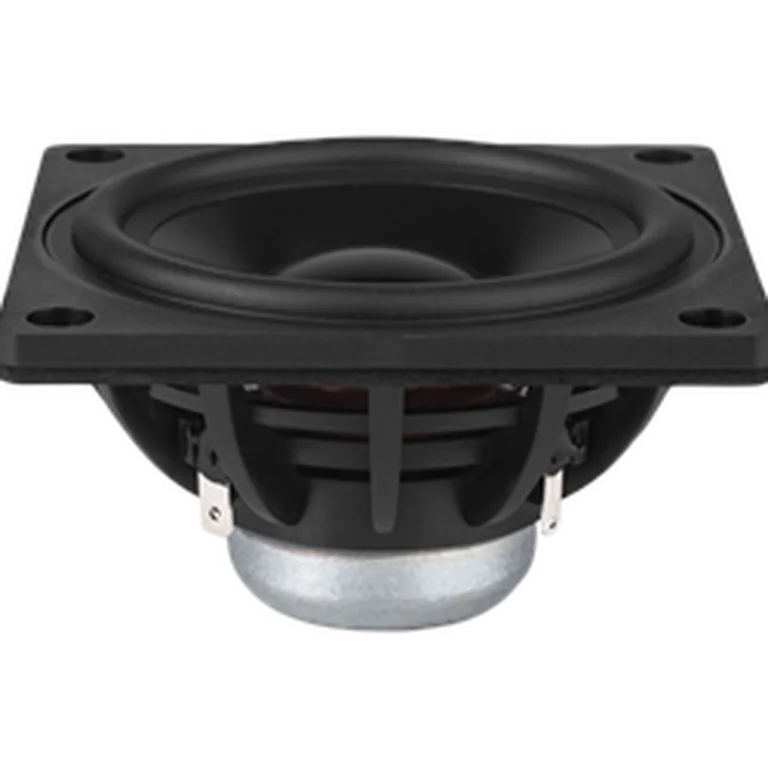

Dayton Audio DMA80-8 standard | Fs 98 Hz, 82.3 dB, Qts 0.470 | LoudspeakerLab

Thiele-Small parameters

Fs: 98 Hz; Qts: 0.470; Qes: 0.609; Qms: 2.056; Vas: 1.34 L; Sd: 31.2 cm²; Re: 7.50 Ω; Le: 0.47 mH; Sensitivity: 82.3 dB; Nominal Z: 7.9 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 67 · DI tracking 68 · DI smoothness 42

Usable passband

Scored passband 147 Hz–5.3 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~1.5 L · Fb 94 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $17.98 USD
• solen — $25.40 CAD
• soundimports — $24.75 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
