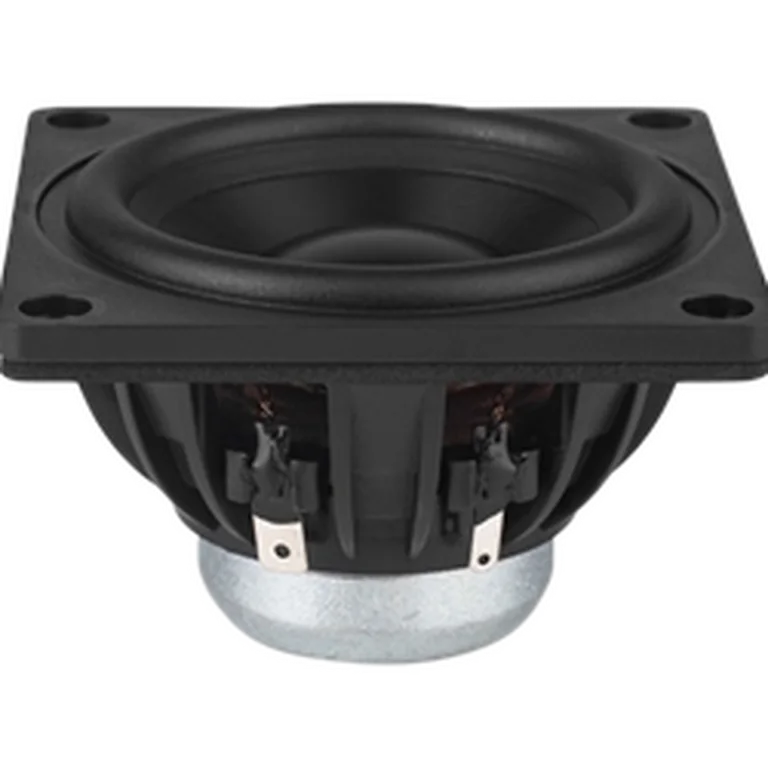

Dayton Audio DMA70-8 standard | Fs 114 Hz, 80.2 dB, Qts 0.502 | LoudspeakerLab

Thiele-Small parameters

Fs: 114 Hz; Qts: 0.502; Qes: 0.663; Qms: 2.064; Vas: 0.54 L; Sd: 22.9 cm²; Re: 7.51 Ω; Le: 0.47 mH; Sensitivity: 80.2 dB; Nominal Z: 8.0 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 63 · DI tracking 71 · DI smoothness 37

Usable passband

Scored passband 170 Hz–5.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~0.7 L · Fb 102 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $16.98 USD
• solen — $22.32 CAD
• soundimports — $23.10 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
