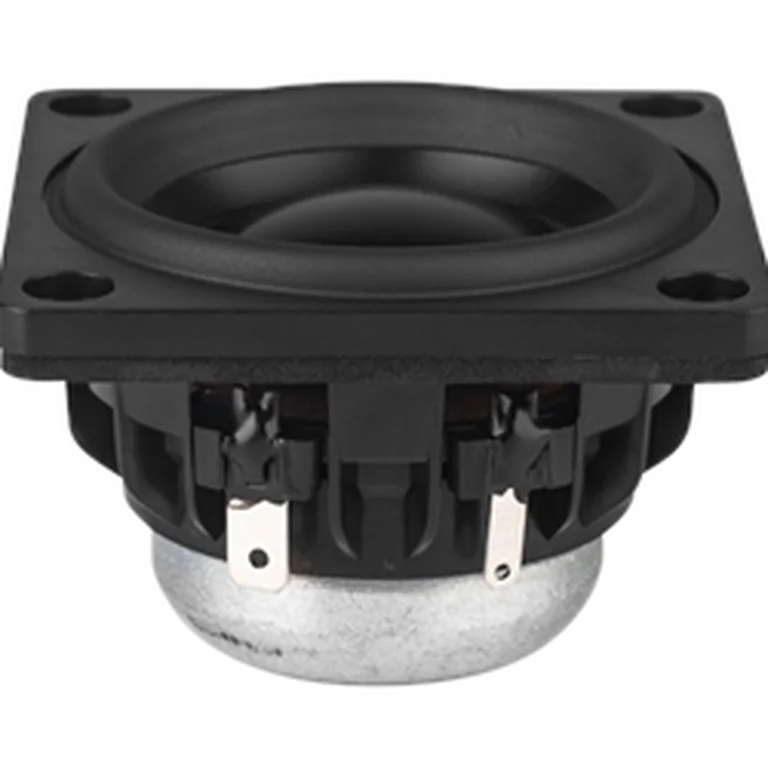

Dayton Audio DMA58-8 standard | Fs 166 Hz, 78.4 dB, Qts 0.537 | LoudspeakerLab

Thiele-Small parameters

Fs: 166 Hz; Qts: 0.537; Qes: 0.688; Qms: 2.446; Vas: 0.15 L; Sd: 15.2 cm²; Re: 6.96 Ω; Le: 0.44 mH; Sensitivity: 78.4 dB; Nominal Z: 7.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 67 · DI tracking 54 · DI smoothness 15

Usable passband

Scored passband 1004 Hz–11.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~0.2 L · Fb 143 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $13.98 USD
• solen — $25.74 CAD
• soundimports — $16.49 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
