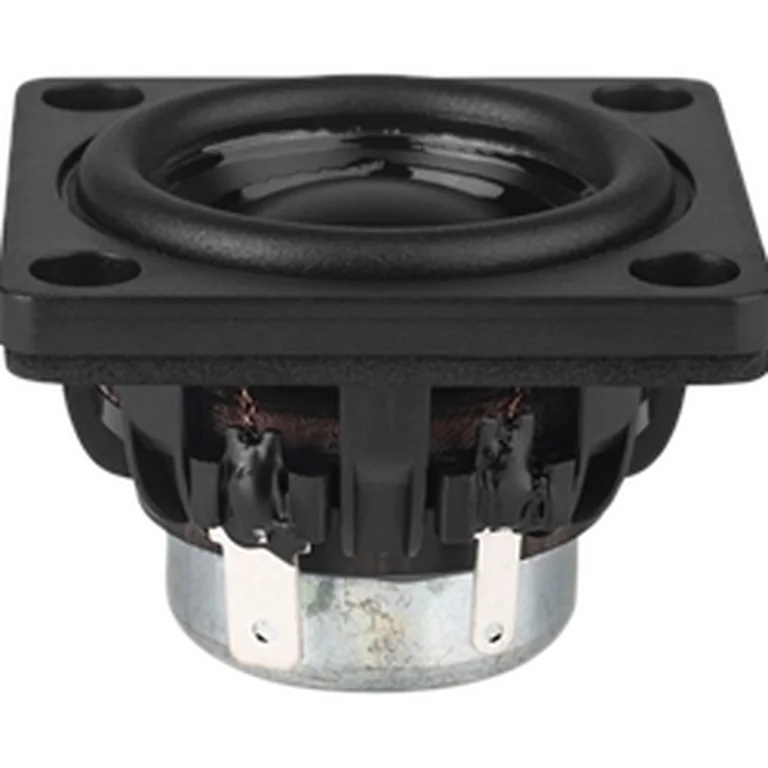

Dayton Audio DMA45-8 standard | Fs 164 Hz, 76.2 dB, Qts 0.885 | LoudspeakerLab

Thiele-Small parameters

Fs: 164 Hz; Qts: 0.885; Qes: 1.050; Qms: 5.619; Vas: 0.09 L; Sd: 8.6 cm²; Re: 7.19 Ω; Le: 0.40 mH; Sensitivity: 76.2 dB; Nominal Z: 7.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 66 · DI tracking 55 · DI smoothness 7

Usable passband

Scored passband 2192 Hz–12.8 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~0.2 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $8.98 USD
• solen — $14.66 CAD
• soundimports — $12.11 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
