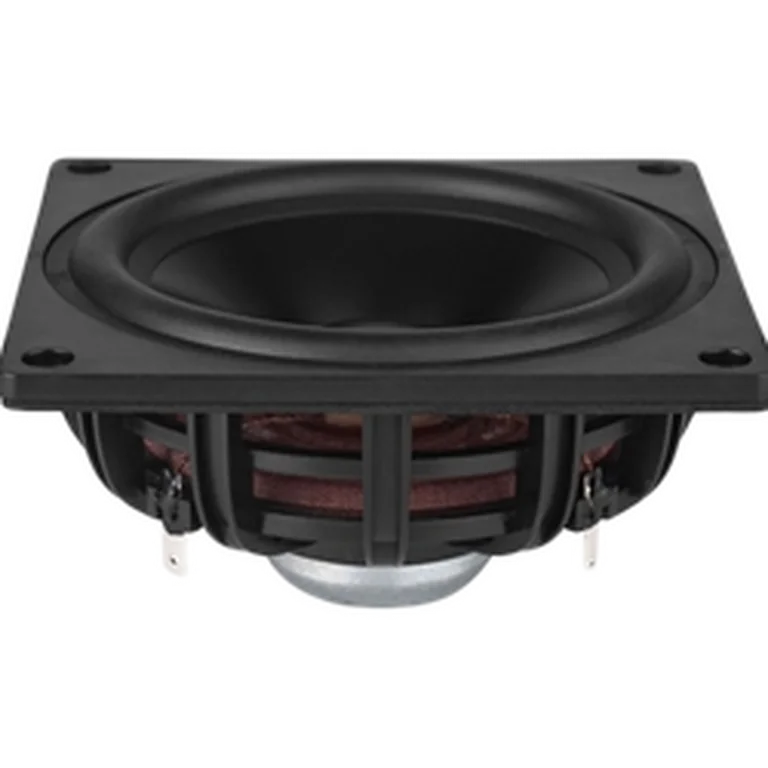

Dayton Audio DMA105-8 standard | Fs 72 Hz, 83.1 dB, Qts 0.634 | LoudspeakerLab

Thiele-Small parameters

Fs: 72 Hz; Qts: 0.634; Qes: 0.834; Qms: 2.642; Vas: 4.11 L; Sd: 54.1 cm²; Re: 7.53 Ω; Le: 0.58 mH; Sensitivity: 83.1 dB; Nominal Z: 7.9 Ω; Measured range: 20-19670 Hz

Driver quality scores

On-axis flatness 73 · DI tracking 71 · DI smoothness 48

Usable passband

Scored passband 107 Hz–4.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~7.3 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $18.98 USD
• solen — $25.65 CAD
• soundimports — $21.86 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
