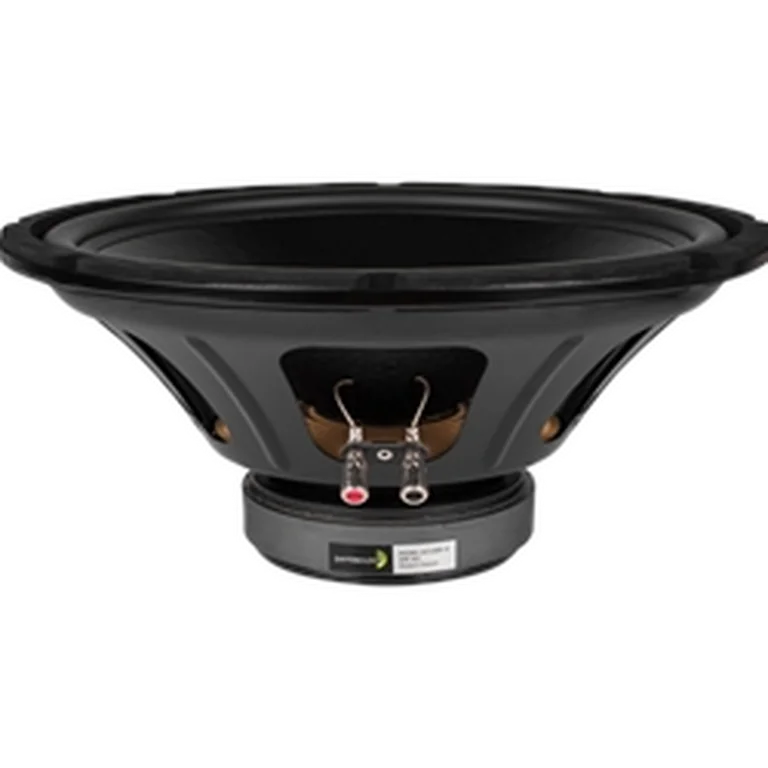

Dayton Audio DCS385-4 standard | Fs 18 Hz, 89.8 dB, Qts 0.390 | LoudspeakerLab

Thiele-Small parameters

Fs: 18 Hz; Qts: 0.390; Qes: 0.420; Qms: 5.270; Vas: 311.00 L; Sd: 850.1 cm²; Re: 3.30 Ω; Le: 2.20 mH; Sensitivity: 89.8 dB; Nominal Z: 4.9 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 52

Usable passband

Scored passband 26 Hz–1.5 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~236.3 L · Fb 20 Hz

Measurement profiles

• spec sheet (spec_sheet)

Public designs

1 public loudspeaker design on LoudspeakerLab use this driver.

• 3 Way 15SS

Where to buy

• parts_express — $129.98 USD
• rumoh — $199.90 EUR
• solen — $201.60 CAD
• soundimports — $181.78 EUR
• theloudspeakerkit — $438.35 AUD

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
