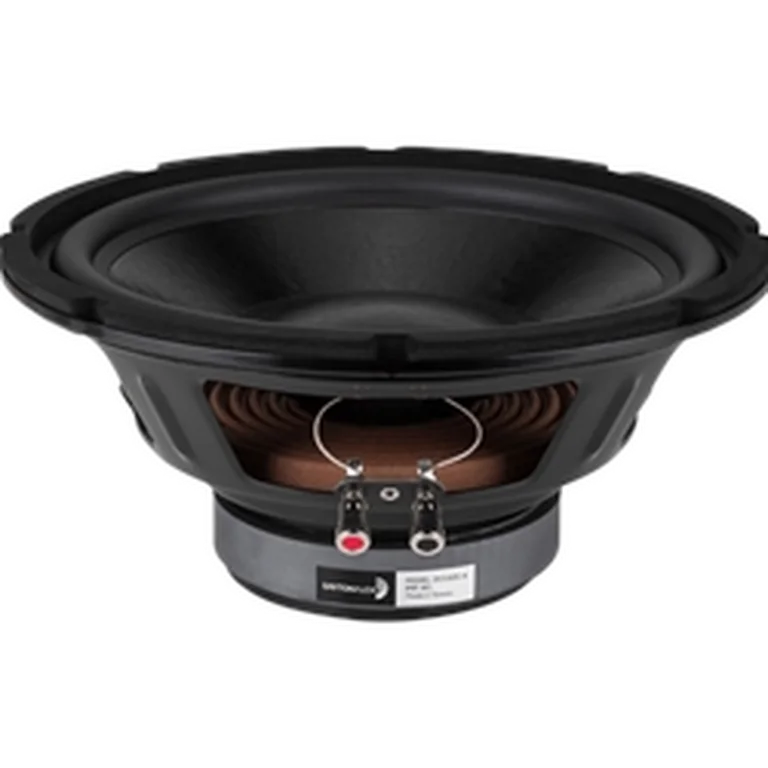

Dayton Audio DCS305-4 standard | Fs 24 Hz, 87.3 dB, Qts 0.400 | LoudspeakerLab

Thiele-Small parameters

Fs: 24 Hz; Qts: 0.400; Qes: 0.430; Qms: 5.070; Vas: 92.30 L; Sd: 498.8 cm²; Re: 3.30 Ω; Le: 2.06 mH; Sensitivity: 87.3 dB; Nominal Z: 4.9 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 50

Usable passband

Scored passband 37 Hz–1.8 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~74.4 L · Fb 27 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $687.79 PLN
• parts_express — $104.98 USD
• rumoh — $152.90 EUR
• solen — $152.51 CAD
• soundimports — $132.19 EUR

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
