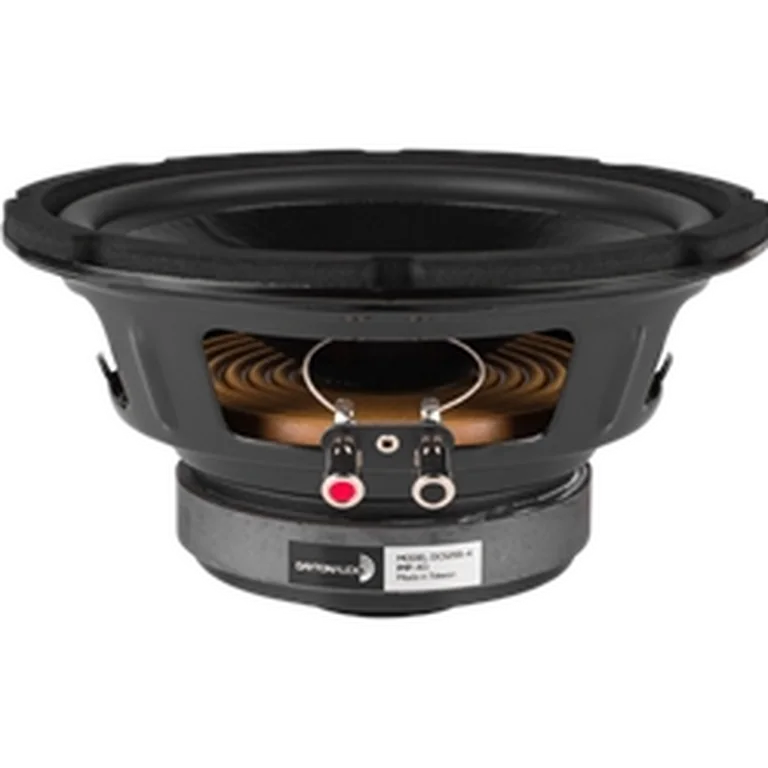

Dayton Audio DCS255-4 standard | Fs 38 Hz, 86.6 dB, Qts 0.460 | LoudspeakerLab

Thiele-Small parameters

Fs: 38 Hz; Qts: 0.460; Qes: 0.500; Qms: 7.420; Vas: 32.10 L; Sd: 346.4 cm²; Re: 3.45 Ω; Le: 1.80 mH; Sensitivity: 86.6 dB; Nominal Z: 4.6 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 58

Usable passband

Scored passband 57 Hz–1.4 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~35.0 L · Fb 37 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $623.29 PLN
• parts_express — $89.98 USD
• rumoh — $144.90 EUR
• solen — $157.56 CAD
• soundimports — $119.79 EUR

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
