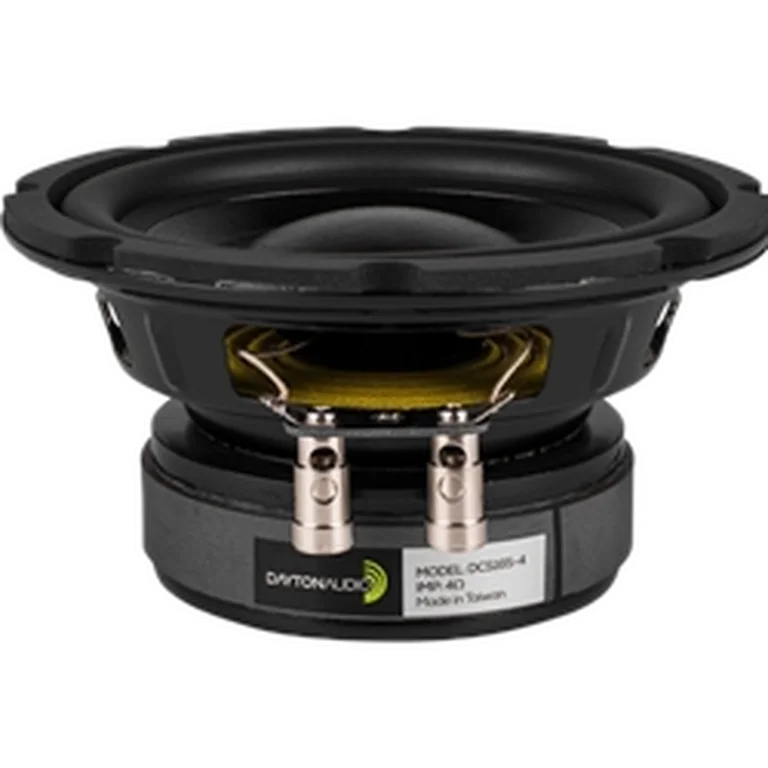

Dayton Audio DCS165-4 standard | Fs 36 Hz, 83.8 dB, Qts 0.340 | LoudspeakerLab

Thiele-Small parameters

Fs: 36 Hz; Qts: 0.340; Qes: 0.360; Qms: 6.620; Vas: 12.10 L; Sd: 124.7 cm²; Re: 3.40 Ω; Le: 1.43 mH; Sensitivity: 83.8 dB; Nominal Z: 4.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 61

Usable passband

Scored passband 54 Hz–1.2 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~7.0 L · Fb 46 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $315.84 PLN
• parts_express — $59.98 USD
• rumoh — $73.40 EUR
• solen — $91.37 CAD
• soundimports — $60.70 EUR

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
