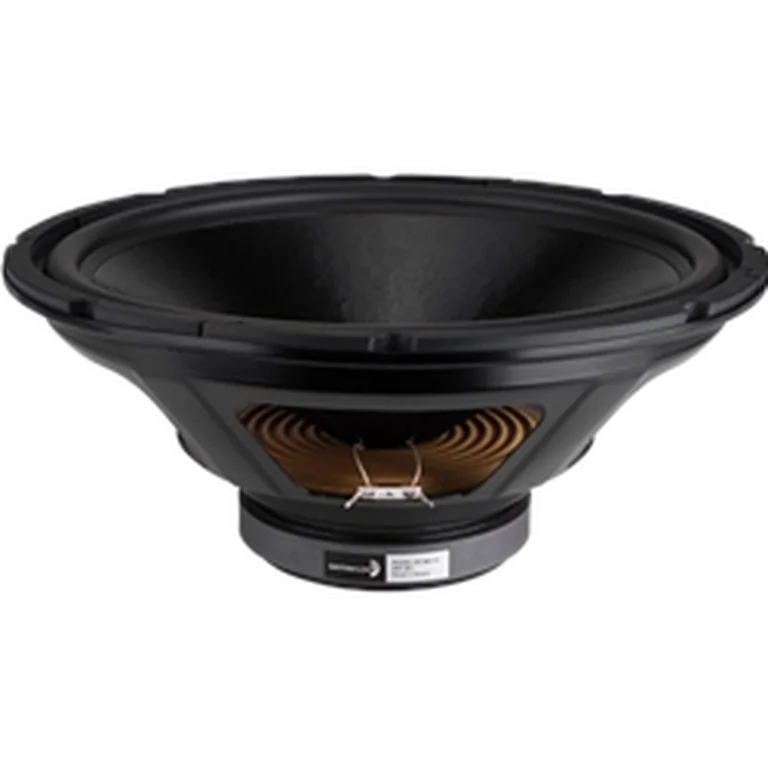

Dayton Audio DC380-8 standard | Fs 19 Hz, 91.4 dB, Qts 0.300 | LoudspeakerLab

Thiele-Small parameters

Fs: 19 Hz; Qts: 0.300; Qes: 0.340; Qms: 2.870; Vas: 391.40 L; Sd: 834.7 cm²; Re: 6.40 Ω; Le: 3.09 mH; Sensitivity: 91.4 dB; Nominal Z: 7.1 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 57 · DI tracking 63 · DI smoothness 82

Usable passband

Scored passband 29 Hz–1.4 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~182.9 L · Fb 27 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $644.79 PLN
• parts_express — $104.98 USD
• rumoh — $139.90 EUR
• solen — $163.84 CAD
• soundimports — $123.93 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
