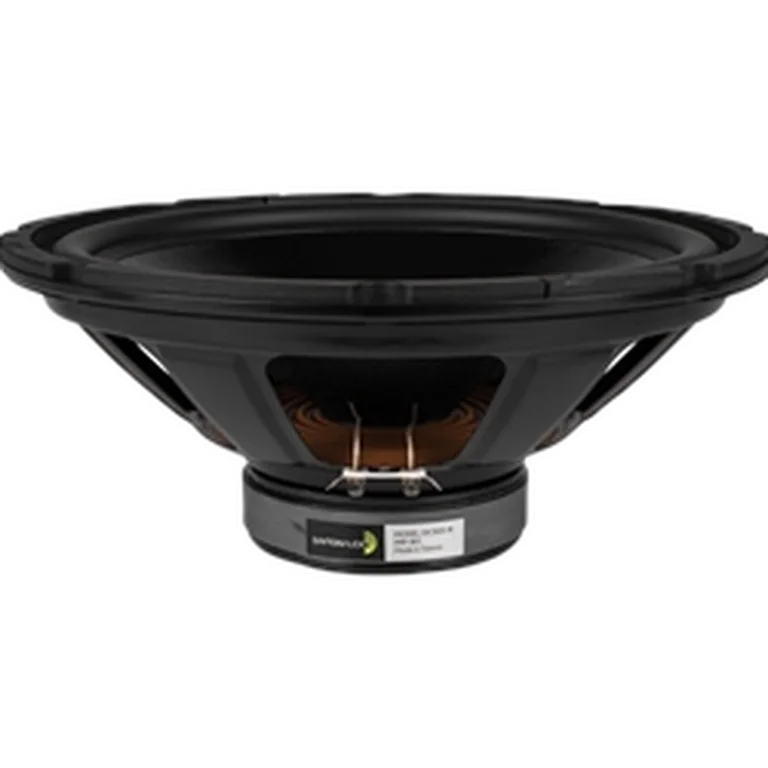

Dayton Audio DC300-8 standard | Fs 23 Hz, 89.4 dB, Qts 0.330 | LoudspeakerLab

Thiele-Small parameters

Fs: 23 Hz; Qts: 0.330; Qes: 0.370; Qms: 3.210; Vas: 181.50 L; Sd: 498.8 cm²; Re: 6.80 Ω; Le: 2.93 mH; Sensitivity: 89.4 dB; Nominal Z: 7.7 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 67 · DI tracking 59 · DI smoothness 70

Usable passband

Scored passband 35 Hz–2.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~99.3 L · Fb 30 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $343.79 PLN
• parts_express — $62.98 USD
• rumoh — $79.90 EUR
• solen — $94.06 CAD
• soundimports — $66.07 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
