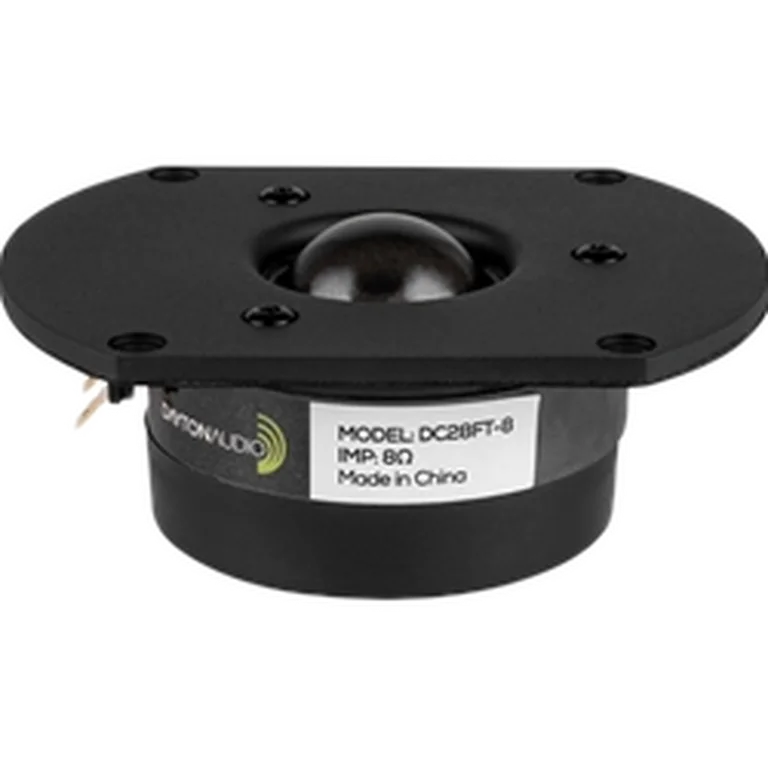

Dayton Audio DC28FT-8 standard | Fs 834 Hz, 93.1 dB, Qts 0.500 | LoudspeakerLab

Thiele-Small parameters

Fs: 834 Hz; Qts: 0.500; Qes: 1.330; Qms: 0.810; Sd: 6.6 cm²; Re: 5.40 Ω; Le: 0.09 mH; Sensitivity: 93.1 dB; Nominal Z: 5.5 Ω; Measured range: 298-20000 Hz

Driver quality scores

On-axis flatness 67 · DI tracking 52 · DI smoothness 11

Usable passband

Scored passband 1664 Hz–12.2 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $128.79 PLN
• parts_express — $25.98 USD
• solen — $37.87 CAD
• soundimports — $29.95 EUR
• theloudspeakerkit — $57.50 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (55.6/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
