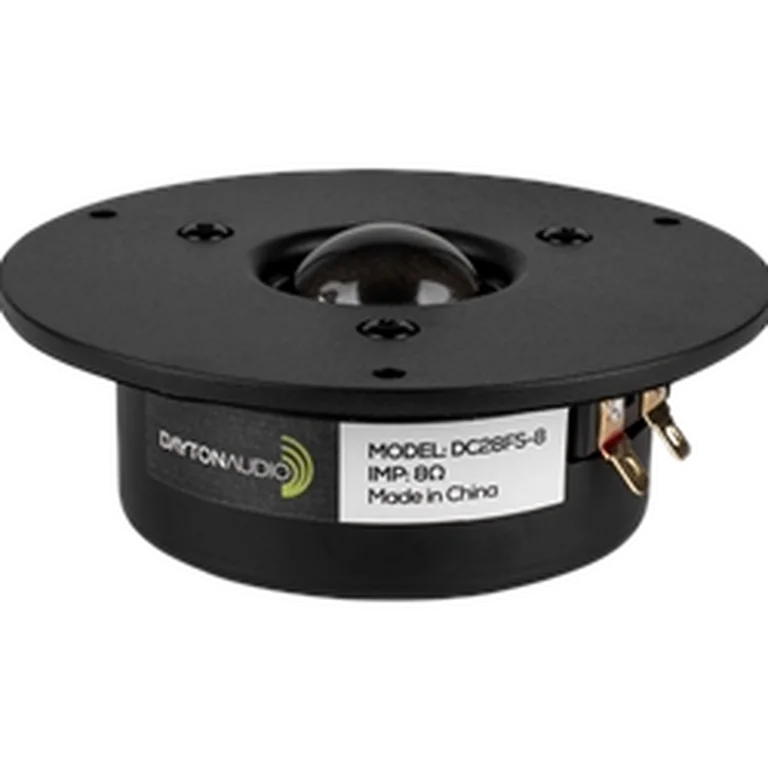

Dayton Audio DC28FS-8 standard | Fs 905 Hz, 93.8 dB, Qts 0.970 | LoudspeakerLab

Thiele-Small parameters

Fs: 905 Hz; Qts: 0.970; Qes: 1.730; Qms: 2.210; Sd: 6.6 cm²; Re: 5.40 Ω; Le: 1.58 mH; Sensitivity: 93.8 dB; Nominal Z: 5.5 Ω; Measured range: 298-20000 Hz

Driver quality scores

On-axis flatness 58 · DI tracking 18 · DI smoothness 0

Usable passband

Scored passband 1815 Hz–15.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $145.99 PLN
• parts_express — $28.79 USD
• rumoh — $33.90 EUR
• solen — $42.52 CAD
• soundimports — $33.95 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (55.6/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
