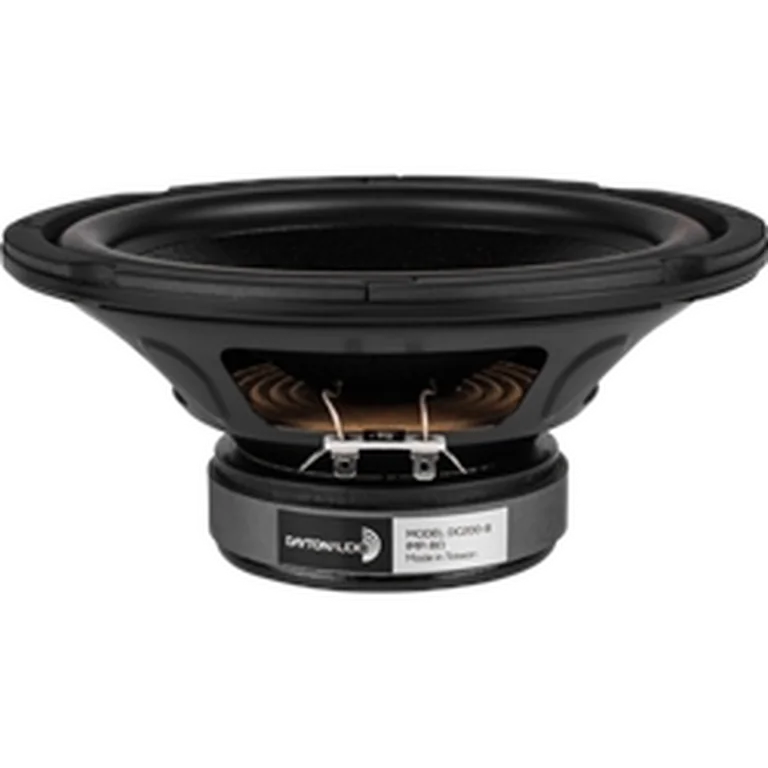

Dayton Audio DC200-8 standard | Fs 30 Hz, 85.1 dB, Qts 0.420 | LoudspeakerLab

Thiele-Small parameters

Fs: 30 Hz; Qts: 0.420; Qes: 0.490; Qms: 3.060; Vas: 45.70 L; Sd: 211.2 cm²; Re: 6.41 Ω; Le: 2.32 mH; Sensitivity: 85.1 dB; Nominal Z: 7.1 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 61 · DI tracking 94 · DI smoothness 84

Usable passband

Scored passband 45 Hz–962 Hz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~40.5 L · Fb 32 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $214.79 PLN
• parts_express — $36.98 USD
• rumoh — $47.90 EUR
• solen — $55.31 CAD
• soundimports — $41.28 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
