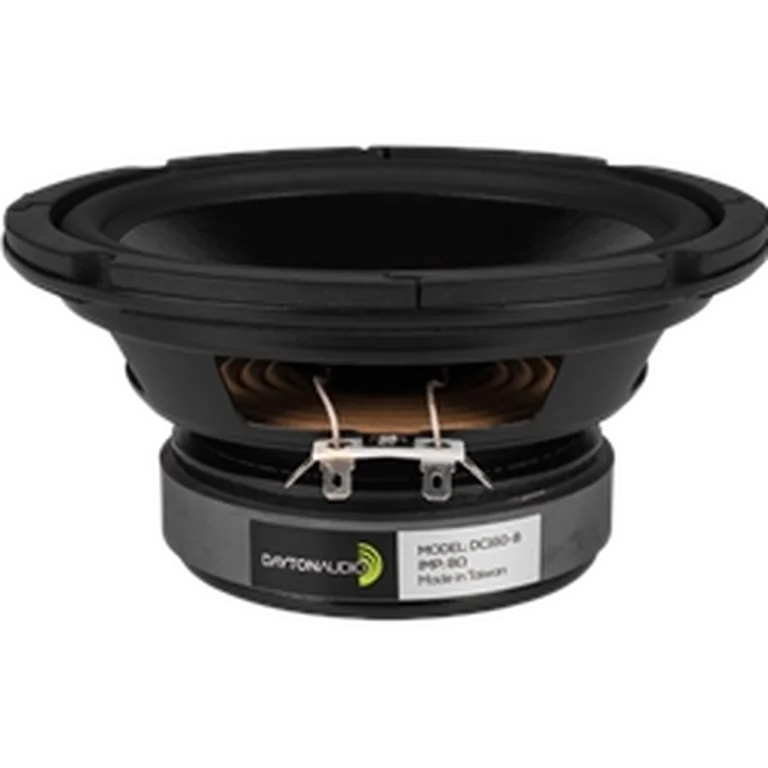

Dayton Audio DC160-8 standard | Fs 36 Hz, 86.1 dB, Qts 0.340 | LoudspeakerLab

Thiele-Small parameters

Fs: 36 Hz; Qts: 0.340; Qes: 0.380; Qms: 3.460; Vas: 17.90 L; Sd: 134.8 cm²; Re: 6.60 Ω; Le: 2.26 mH; Sensitivity: 86.1 dB; Nominal Z: 7.7 Ω; Measured range: 5-39794 Hz

Driver quality scores

On-axis flatness 65 · DI tracking 84 · DI smoothness 62

Usable passband

Scored passband 60 Hz–1.5 kHz

Measurement coverage

Measured profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~10.4 L · Fb 46 Hz

Measurement profiles

• in-cabinet (measured)

Where to buy

• blackdotaudio — $171.79 PLN
• parts_express — $31.98 USD
• rumoh — $39.95 EUR
• solen — $48.14 CAD
• soundimports — $33.02 EUR

Measurement quality

LoudspeakerLab evidence grade: B+ (72.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
