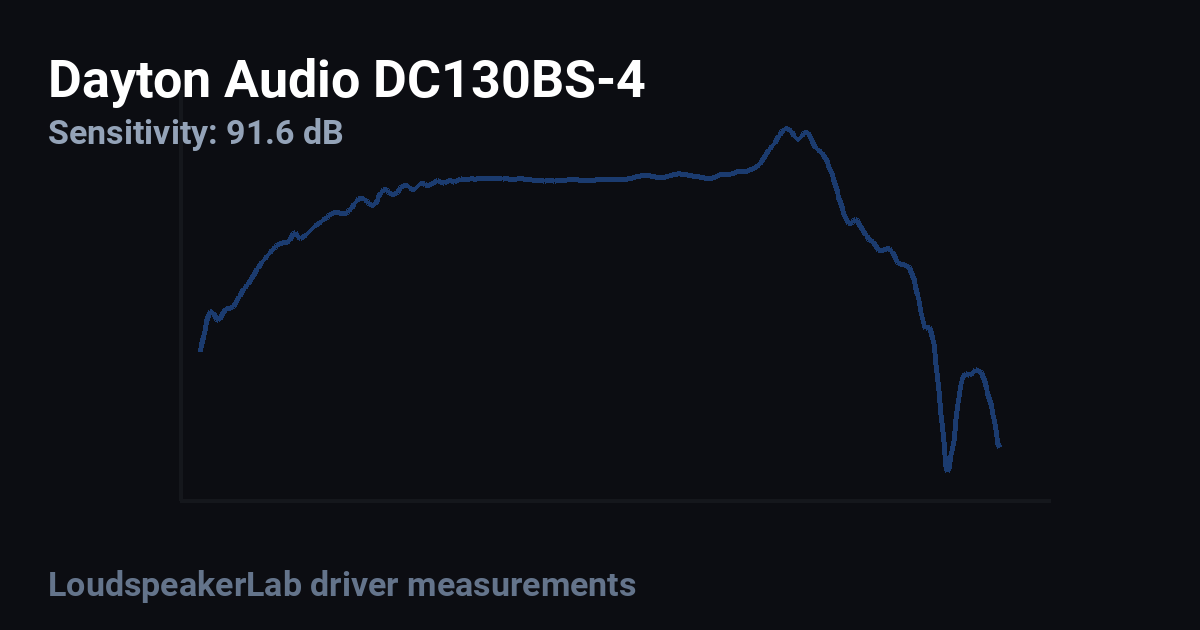

Dayton Audio DC130BS-4 standard | Fs 52 Hz, 91.6 dB, Qts 0.350 | LoudspeakerLab

Thiele-Small parameters

Fs: 52 Hz; Qts: 0.350; Qes: 0.440; Qms: 1.860; Vas: 13.03 L; Sd: 93.3 cm²; Re: 3.55 Ω; Le: 0.50 mH; Sensitivity: 91.6 dB; Nominal Z: 6.2 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 52 · DI tracking 57 · DI smoothness 45

Usable passband

Scored passband 76 Hz–5.0 kHz

Measurement coverage

Measured profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~8.0 L · Fb 65 Hz

Measurement profiles

• uploaded measurement (measured)

Where to buy

• parts_express — $30.98 USD
• solen — $45.87 CAD
• soundimports — $37.15 EUR
• theloudspeakerkit — $72.50 AUD

Measurement quality

LoudspeakerLab evidence grade: B+ (79.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
