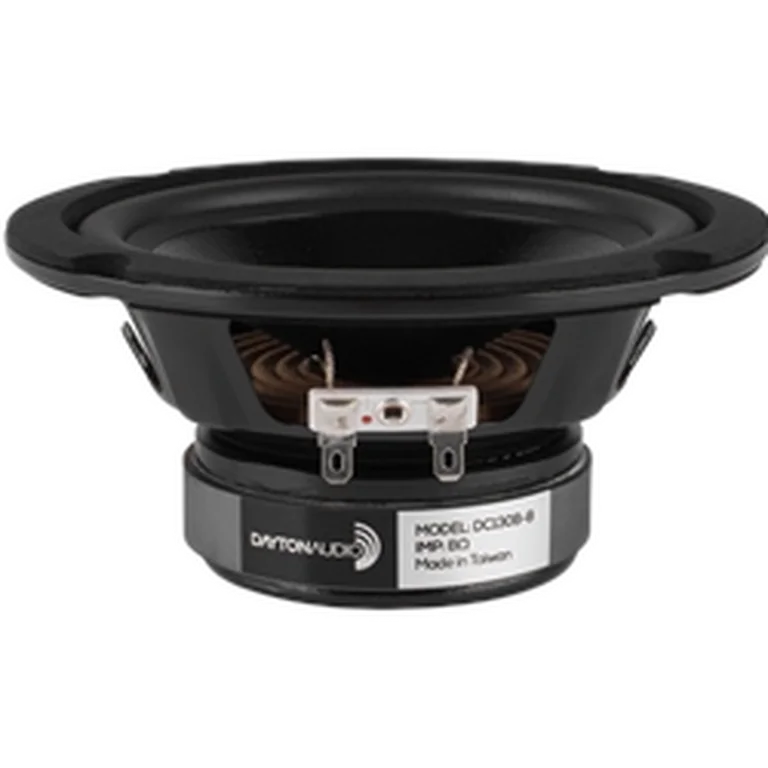

Dayton Audio DC130B-8 standard | Fs 52 Hz, 88.4 dB, Qts 0.380 | LoudspeakerLab

Thiele-Small parameters

Fs: 52 Hz; Qts: 0.380; Qes: 0.480; Qms: 1.850; Vas: 12.40 L; Sd: 91.6 cm²; Re: 5.70 Ω; Le: 0.77 mH; Sensitivity: 88.4 dB; Nominal Z: 6.2 Ω; Measured range: 20-19670 Hz

Driver quality scores

On-axis flatness 55 · DI tracking 62 · DI smoothness 44

Usable passband

Scored passband 78 Hz–4.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~8.9 L · Fb 61 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• solen — $39.30 CAD
• soundimports — $37.15 EUR
• theloudspeakerkit — $62.50 AUD
• parts_express — $28.98 USD
• wilmslow — $48.00 GBP

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
