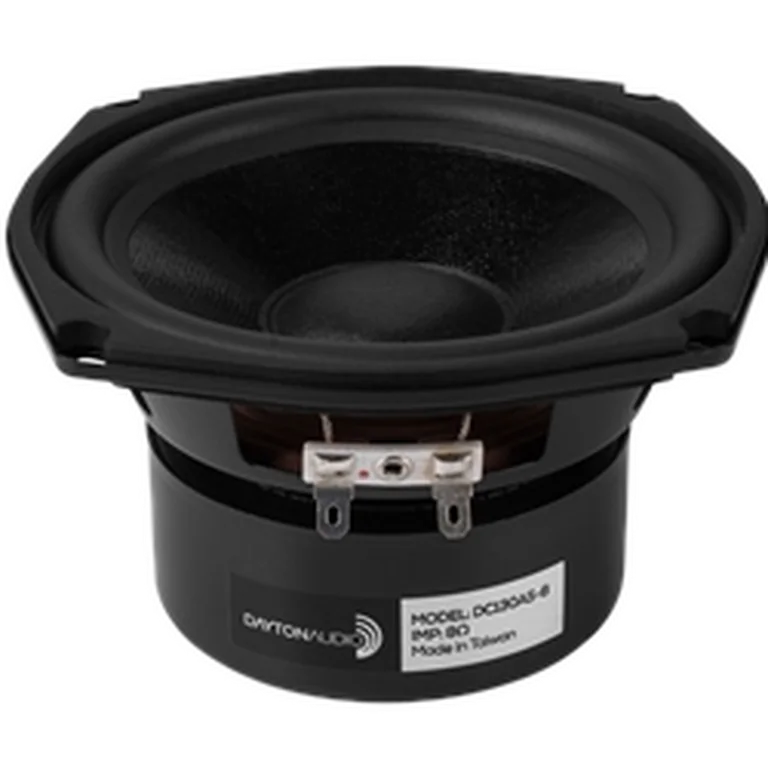

Dayton Audio DC130AS-8 standard | Fs 57 Hz, 87.7 dB, Qts 0.450 | LoudspeakerLab

Thiele-Small parameters

Fs: 57 Hz; Qts: 0.450; Qes: 0.580; Qms: 2.010; Vas: 9.73 L; Sd: 91.6 cm²; Re: 5.60 Ω; Le: 0.84 mH; Sensitivity: 87.7 dB; Nominal Z: 6.2 Ω; Measured range: 20-19670 Hz

Driver quality scores

On-axis flatness 56 · DI tracking 56 · DI smoothness 47

Usable passband

Scored passband 85 Hz–4.4 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~10.1 L · Fb 57 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $27.98 USD
• rumoh — $31.40 EUR
• solen — $29.00 CAD
• theloudspeakerkit — $55.00 AUD
• wilmslow — $48.00 GBP

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
