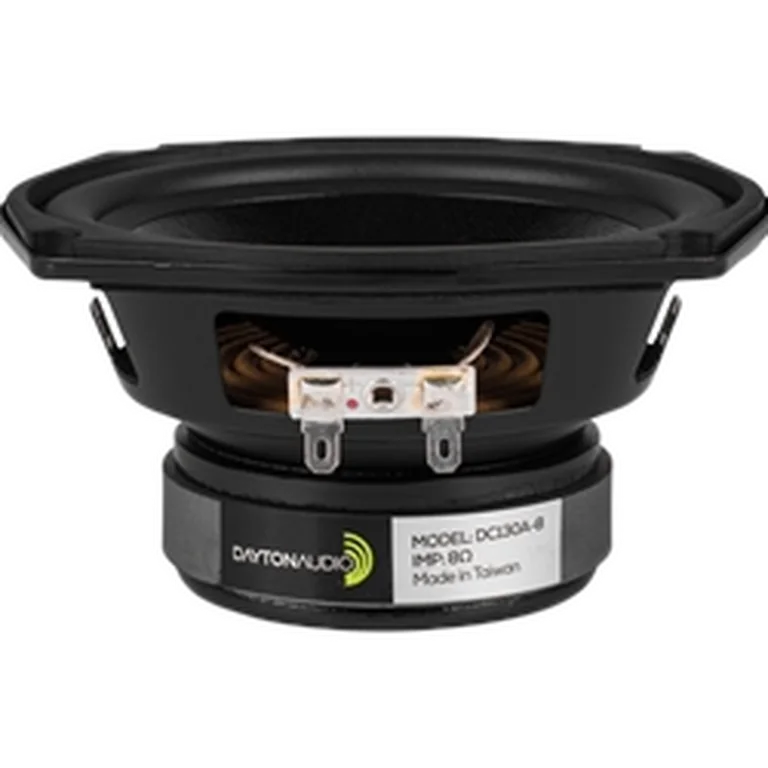

Dayton Audio DC130A-8 standard | Fs 53 Hz, 88.6 dB, Qts 0.410 | LoudspeakerLab

Thiele-Small parameters

Fs: 53 Hz; Qts: 0.410; Qes: 0.510; Qms: 1.900; Vas: 11.80 L; Sd: 91.6 cm²; Re: 5.70 Ω; Le: 0.75 mH; Sensitivity: 88.6 dB; Nominal Z: 6.2 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 56 · DI tracking 60 · DI smoothness 60

Usable passband

Scored passband 80 Hz–4.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~10.0 L · Fb 58 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $26.98 USD
• rumoh — $31.40 EUR
• solen — $36.38 CAD
• soundimports — $28.88 EUR
• theloudspeakerkit — $59.50 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
