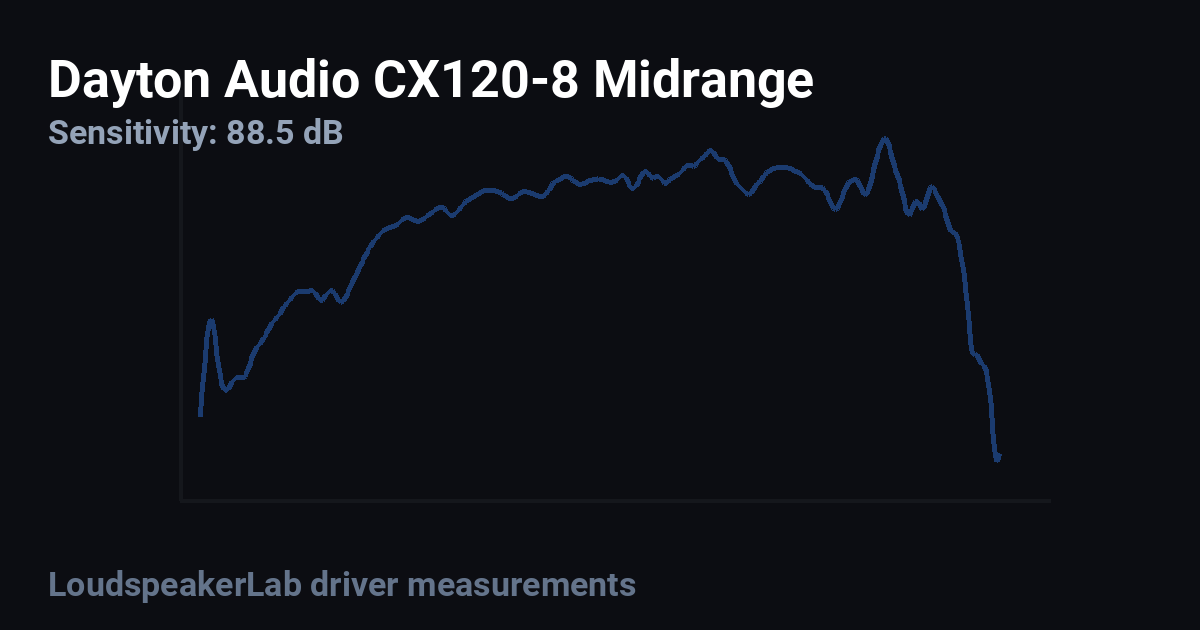

Dayton Audio CX120-8 Midrange standard | Fs 88 Hz, 88.5 dB, Qts 0.478 | LoudspeakerLab

Dayton Audio CX120-8 Midrange standard measurements on LoudspeakerLab. 88.5 dB sensitivity. Fs 88 Hz. Qts 0.478. Evidence grade B+ (79.8/100).

Thiele-Small parameters

Fs: 88 Hz; Qts: 0.478; Qes: 0.572; Qms: 2.892; Vas: 3.00 L; Sd: 52.5 cm²; Re: 6.22 Ω; Le: 0.63 mH; Sensitivity: 88.5 dB; Nominal Z: 6.7 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 64 · DI tracking 49 · DI smoothness 41

Usable passband

Scored passband 131 Hz–6.0 kHz

Measurement coverage

Measured profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~3.6 L · Fb 83 Hz

Measurement profiles

uploaded measurement (measured)

Measurement quality

LoudspeakerLab evidence grade: B+ (79.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
