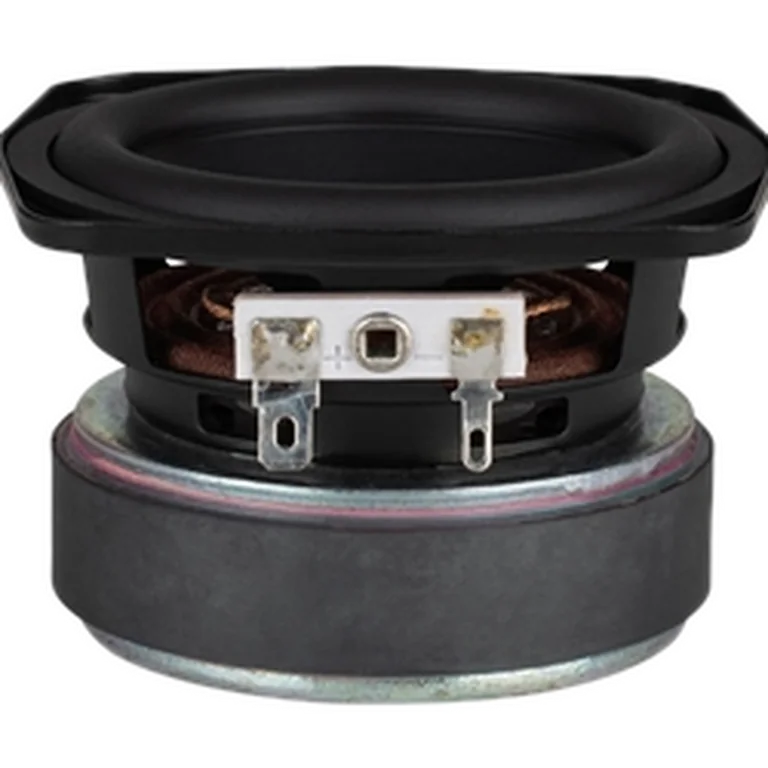

Dayton Audio CE81PF-8 standard | Fs 97 Hz, 93.7 dB, Qts 0.806 | LoudspeakerLab

Thiele-Small parameters

Fs: 97 Hz; Qts: 0.806; Qes: 0.897; Qms: 7.917; Vas: 1.00 L; Sd: 28.3 cm²; Re: 6.75 Ω; Le: 0.14 mH; Sensitivity: 93.7 dB; Nominal Z: 7.2 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 55

Usable passband

Scored passband 147 Hz–9.0 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Sealed ~1.8 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $10.59 USD
• soundimports — $12.36 EUR

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
