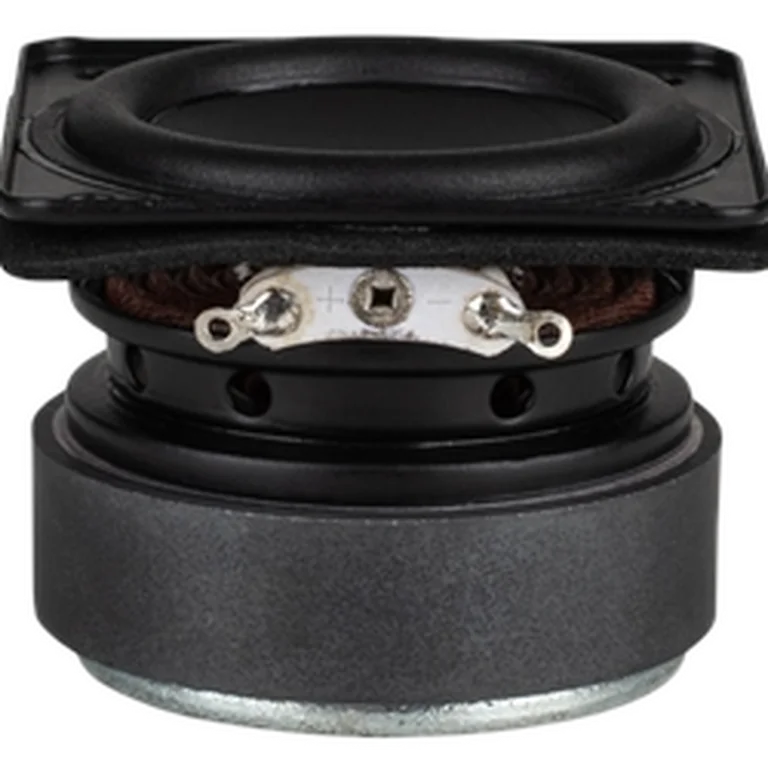

Dayton Audio CE48-4 standard | Fs 151 Hz, 78.0 dB, Qts 0.946 | LoudspeakerLab

Thiele-Small parameters

Fs: 151 Hz; Qts: 0.946; Qes: 1.034; Qms: 11.030; Vas: 0.07 L; Sd: 9.1 cm²; Re: 3.55 Ω; Le: 0.37 mH; Sensitivity: 78.0 dB; Nominal Z: 3.9 Ω; Measured range: 10-20000 Hz

Driver quality scores

On-axis flatness 66

Usable passband

Scored passband 1004 Hz–7.2 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Sealed ~0.1 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $5.89 USD
• soundimports — $6.57 EUR

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
