Wavecor TW030WA14 standard | Fs 715 Hz, 90.5 dB, Qts 1.170 | LoudspeakerLab

Thiele-Small parameters

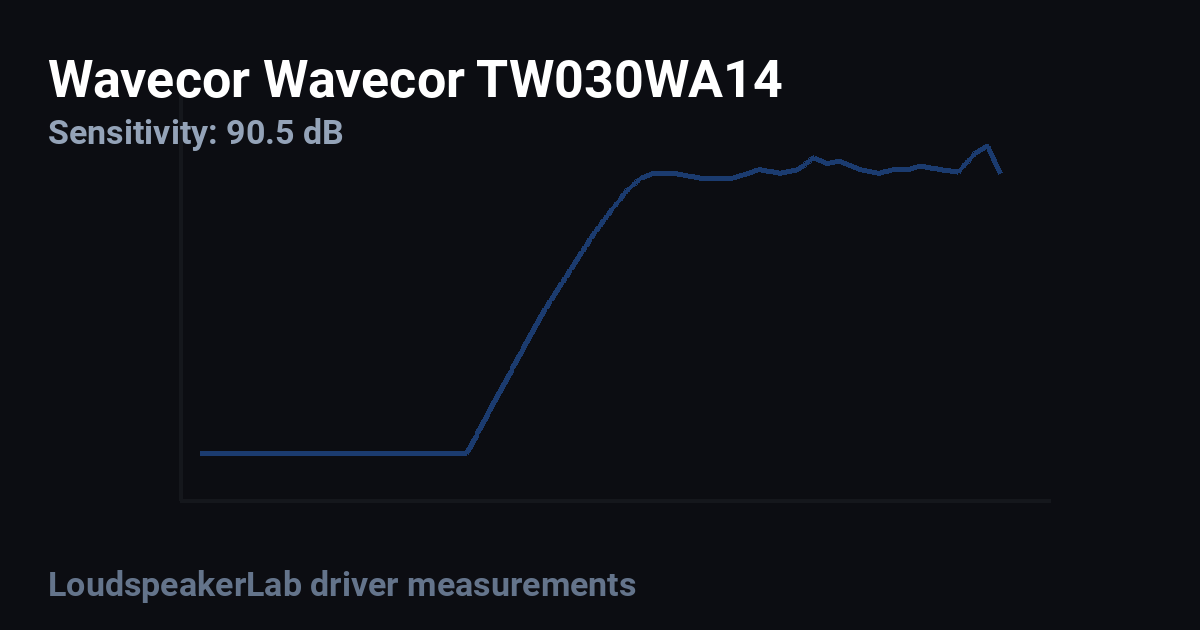

Fs: 715 Hz; Qts: 1.170; Qes: 2.310; Qms: 2.370; Vas: 0.02 L; Sd: 11.5 cm²; Re: 6.50 Ω; Le: 0.06 mH; Sensitivity: 90.5 dB; Nominal Z: 6.7 Ω; Measured range: 200-20000 Hz

Driver quality scores

On-axis flatness 92 · DI tracking 73 · DI smoothness 69

Usable passband

Scored passband 1483 Hz–15.0 kHz

Measurement coverage

Measured profiles · Off-axis H/V response data available.

Measurement profiles

• uploaded measurement (measured)

Public designs

1 public loudspeaker design on LoudspeakerLab use this driver.

• Wavecor Lara

Where to buy

• rumoh — $139.00 EUR

Measurement quality

LoudspeakerLab evidence grade: B+ (79.6/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

Wavecor TW030WA14
