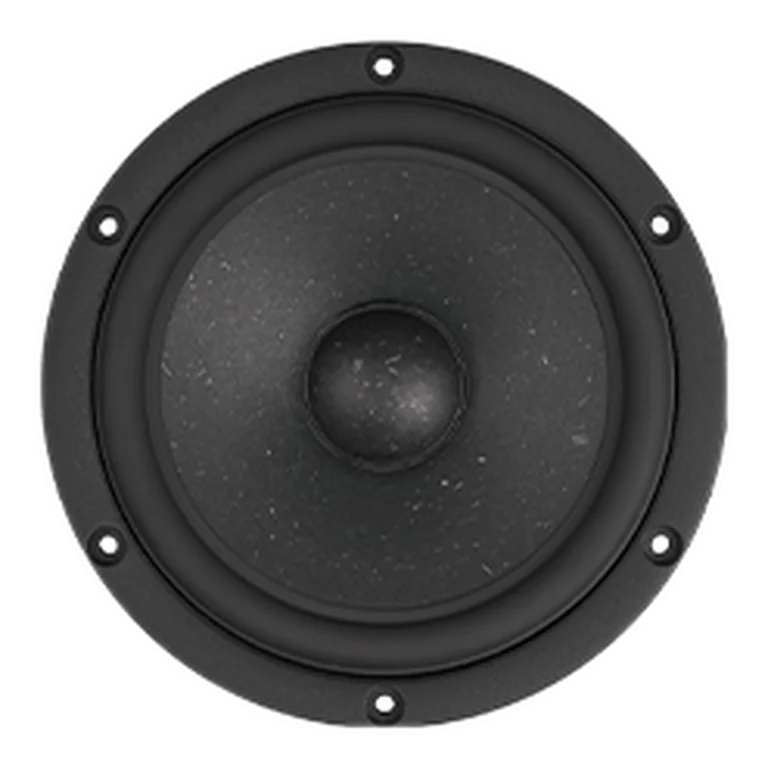

SB Acoustics MR16P-8 standard | Fs 32 Hz, 88.0 dB, Qts 0.300 | LoudspeakerLab

Thiele-Small parameters

Fs: 32 Hz; Qts: 0.300; Qes: 0.320; Qms: 5.110; Vas: 44.30 L; Sd: 119.0 cm²; Re: 6.20 Ω; Le: 0.11 mH; Sensitivity: 88.0 dB; Nominal Z: 8.0 Ω; Measured range: 202-19165 Hz

Driver quality scores

On-axis flatness 49 · DI tracking 0 · DI smoothness 3

Usable passband

Scored passband 48 Hz–12.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~20.7 L · Fb 46 Hz

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $152.00 EUR
• blackdotaudio — $882.15 PLN
• madisound — $206.60 USD
• rumoh — $204.29 EUR
• solen — $299.80 CAD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI MR16P-8

Manufacturer

• SB Acoustics
