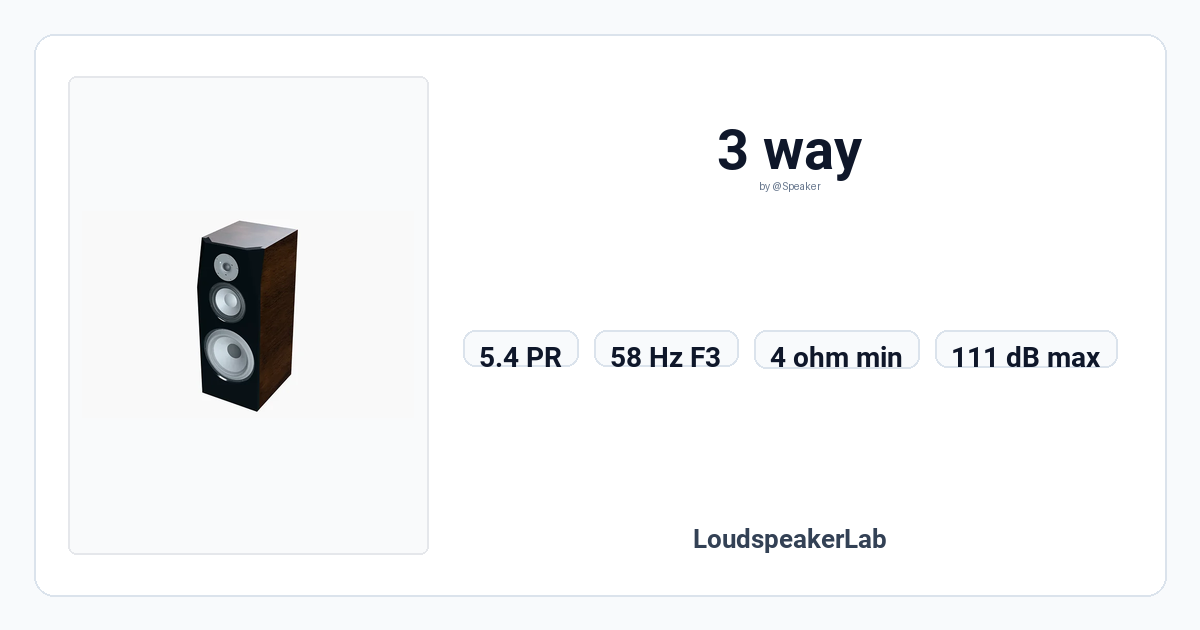

3 way - LoudspeakerLab Design

Design summary

Preference rating 5.4 · F3 58 Hz · Max SPL 111 dB at 1 kHz · Min impedance 4.0 Ω · Sensitivity 89.2 dB · Estimated cost USD 1011

Drivers

• SB Acoustics SATORI WO24P-4 (woofer)
• SB Acoustics SATORI TW29BN-B (tweeter)
• SB Acoustics SATORI MR16P-8 (midrange)

Enclosure

Baffle 267 × 673 mm
