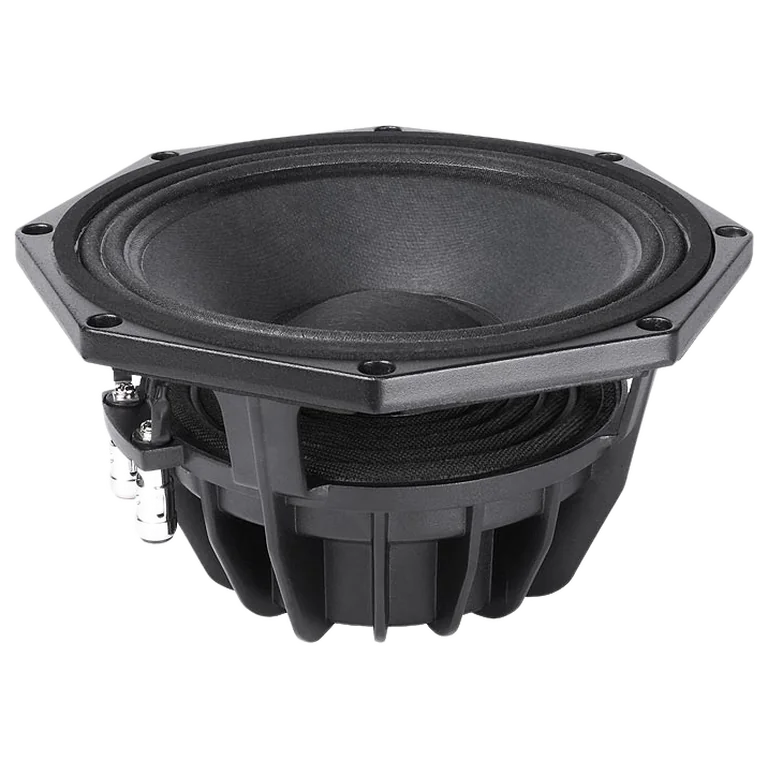

FaitalPRO W8N8-150 standard | Fs 76 Hz, 91.9 dB, Qts 0.840 | LoudspeakerLab

Thiele-Small parameters

Fs: 76 Hz; Qts: 0.840; Qes: 0.880; Qms: 19.500; Vas: 12.70 L; Sd: 222.0 cm²; Re: 11.80 Ω; Le: 0.90 mH; Sensitivity: 91.9 dB; Nominal Z: 13.2 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 62

Usable passband

Scored passband 117 Hz–1.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~23.8 L

Measurement profiles

• spec sheet (spec_sheet)
• spec sheet (spec_sheet)

Where to buy

• bluearan — $76.92 GBP
• parts_express — $198.00 USD
• bluearan — $83.02 GBP
• bluearan — $58.37 GBP
• parts_express — $198.00 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

W8N8-150 (16 Ohm), W8N8-150 (8 Ohm)
