FaitalPRO 8RS250 (8 Ohm) standard | Fs 56 Hz, 93.1 dB, Qts 0.320 | LoudspeakerLab

FaitalPRO 8RS250 (8 Ohm) standard measurements on LoudspeakerLab. 93.1 dB sensitivity. Fs 56 Hz. Qts 0.320. Evidence grade C+ (57.0/100).

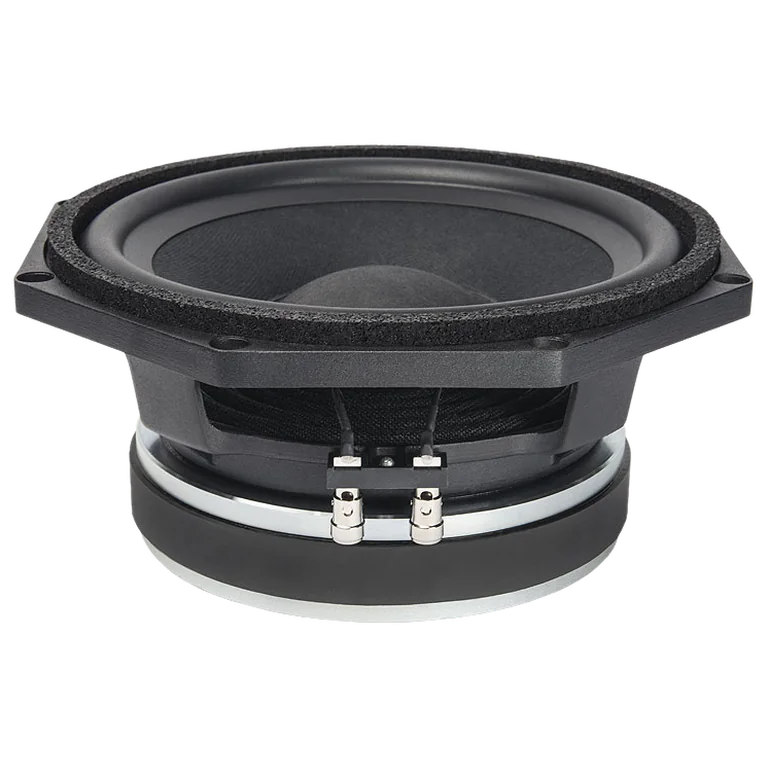

Preview

Thiele-Small parameters

Fs: 56 Hz; Qts: 0.320; Qes: 0.340; Qms: 5.700; Vas: 18.30 L; Sd: 223.0 cm²; Re: 5.70 Ω; Le: 0.35 mH; Sensitivity: 93.1 dB; Nominal Z: 7.2 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 56

Usable passband

Scored passband 94 Hz–4.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~9.5 L · Fb 77 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
