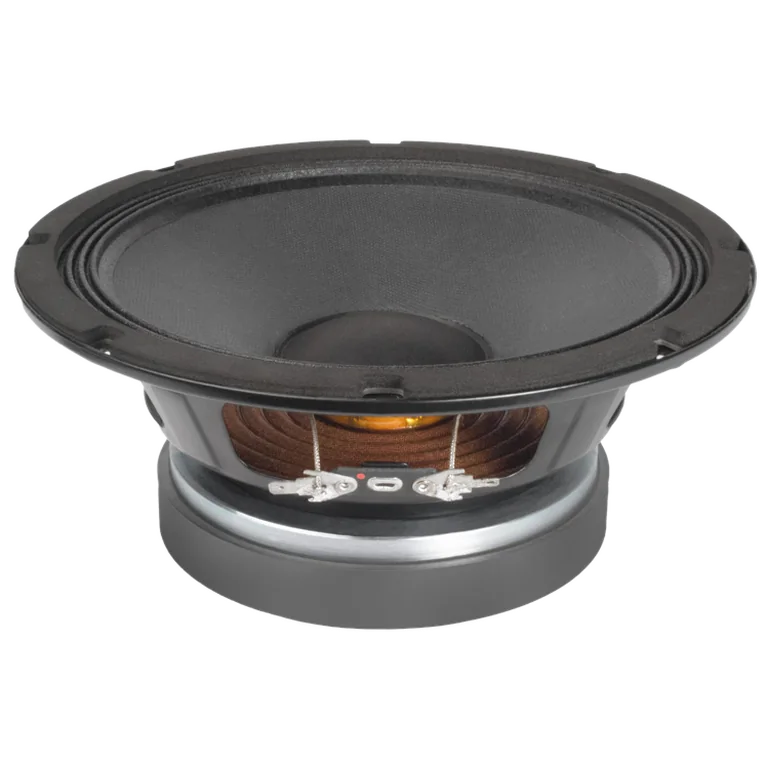

FaitalPRO 8FE400 (8 Ohm) standard | Fs 100 Hz, 95.5 dB, Qts 0.530 | LoudspeakerLab

Name: FaitalPRO 8FE400 (8 Ohm) standard | Fs 100 Hz, 95.5 dB, Qts 0.530 | LoudspeakerLab
Brand: FaitalPRO
SKU: 8FE400 (8 Ohm)
Price: 37.24 GBP
Availability: InStock

FaitalPRO 8FE400 (8 Ohm) standard measurements on LoudspeakerLab. 95.5 dB sensitivity. Fs 100 Hz. Qts 0.530. Evidence grade C+ (57.0/100).

Thiele-Small parameters

Fs: 100 Hz; Qts: 0.530; Qes: 0.580; Qms: 5.300; Vas: 9.40 L; Sd: 233.0 cm²; Re: 5.00 Ω; Le: 0.44 mH; Sensitivity: 95.5 dB; Nominal Z: 6.2 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 74

Usable passband

Scored passband 151 Hz–2.8 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~14.1 L · Fb 87 Hz

Measurement profiles

spec sheet (spec_sheet)

Where to buy

bluearan — $37.24 GBP
parts_express — $90.00 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

FaitalPRO
