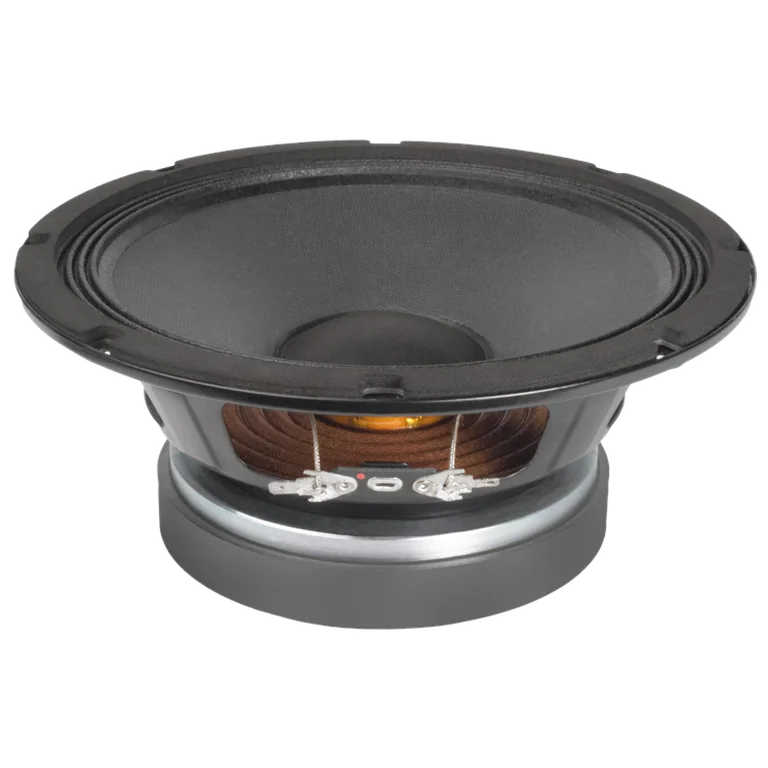

FaitalPRO 8FE400 (4 Ohm) standard | Fs 100 Hz, 93.7 dB, Qts 0.480 | LoudspeakerLab

Name: FaitalPRO 8FE400 (4 Ohm) standard | Fs 100 Hz, 93.7 dB, Qts 0.480 | LoudspeakerLab
Brand: FaitalPRO
SKU: 8FE400 (4 Ohm)
Price: 37.24 GBP
Availability: InStock

FaitalPRO 8FE400 (4 Ohm) standard measurements on LoudspeakerLab. 93.7 dB sensitivity. Fs 100 Hz. Qts 0.480. Evidence grade C+ (57.0/100).

Thiele-Small parameters

Fs: 100 Hz; Qts: 0.480; Qes: 0.530; Qms: 4.800; Vas: 9.90 L; Sd: 233.0 cm²; Re: 3.40 Ω; Le: 0.30 mH; Sensitivity: 93.7 dB; Nominal Z: 4.3 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 69

Usable passband

Scored passband 160 Hz–2.7 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~11.9 L · Fb 94 Hz

Measurement profiles

spec sheet (spec_sheet)

Where to buy

bluearan — $37.24 GBP
parts_express — $90.00 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

FaitalPRO
